Single Eye Cable Pulling Sock's Ref: 105-1

£19.00

SKU :105-1-1

Size
Eye
Overall Length

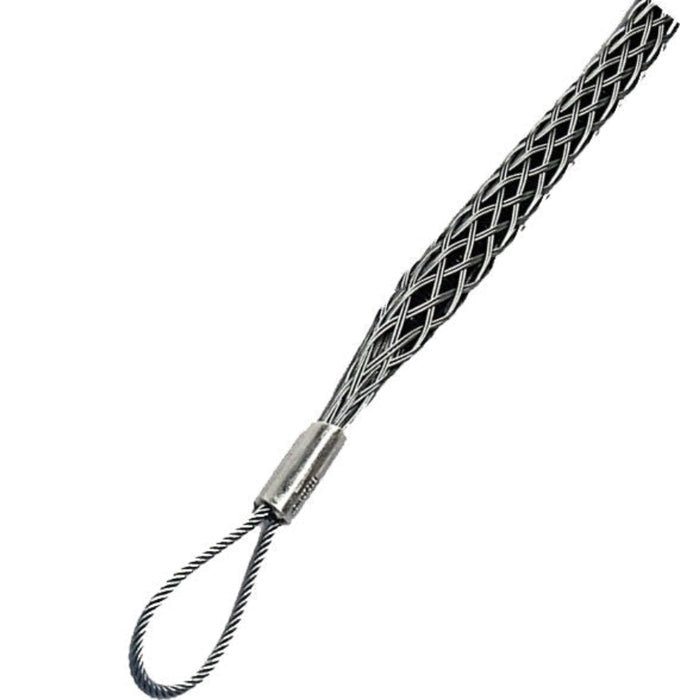

Single Eye Cable Pulling Sock's Ref: 105-1

Sometimes called Cable Socks or Cable Grips.
An efficient method of supporting or pulling cables.
Manufactured from high tensile galvanised steel wire.
Also available on request in stainless steel or kevlar.







Cableituk

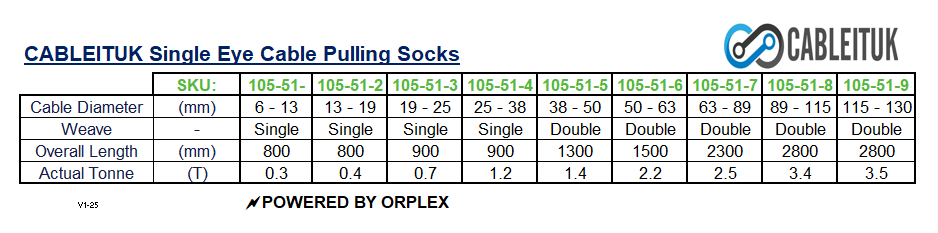

Spec

  • 105-1-1*  Range 6-13mm Dia, 230mm Lattice Length, 305mm Overall Length
  • 105-1-2*  Range 13-19mm Dia, 355mm Lattice Length, 430mm Overall Length
  • 105-1-3*  Range 19-25mm Dia, 405mm Lattice Length, 510mm Overall Length
  • 105-1-4*  Range 25-38mm Dia, 455mm Lattice Length, 610mm Overall Length
  • 105-1-5*  Range 38-50mm Dia, 535mm Lattice Length, 735mm Overall Length
  • 105-1-6*  Range 50-63mm Dia, 610mm Lattice Length, 865mm Overall Length
  • 105-1-7*  Range 63-89mm Dia, 685mm Lattice Length, 990mm Overall Length
  • 105-1-8*  Range 89-115mm Dia, 685mm Lattice Length, 990mm Overall Length
  • 105-1-9*  Range 115-130mm Dia, 685mm Lattice Length, 990mm Overall Length

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
A
A.
Single Eye Cable Pulling Sock's

Very good though leading edge of the barrel crimp part of the sock had a square edge on it which I filed to a rounded edge because I was pulling a 19mm diameter cable down a 38mm diameter duct 60metres long so possible potential of edge to get caught. Had the duct been larger I wouldn’t have needed a sock as rope with clove-hitches would have done the job. Otherwise a brilliant item without which I would not have got a relatively large cable into a rather small duct.
