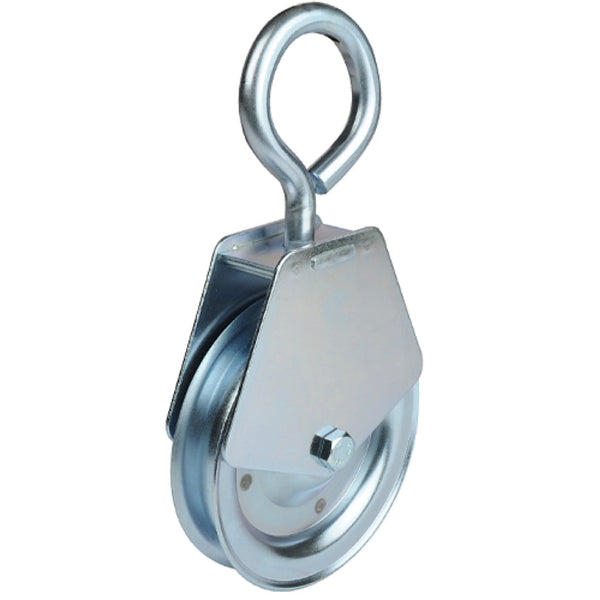

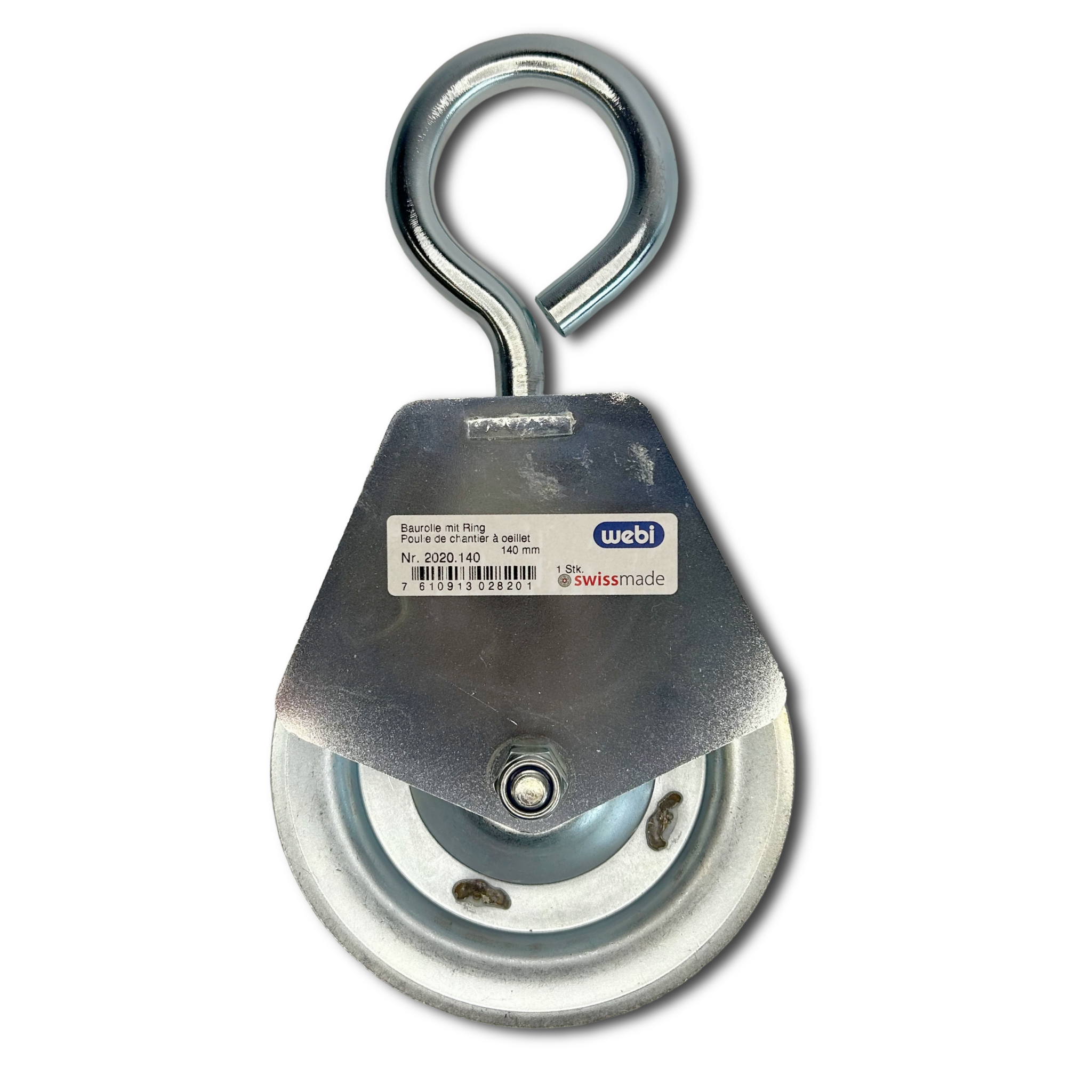

WEBI Pulley Type ETT-202 - Construction Site Pulley with Rotating Steel Hook for Scaffolding (ETTER) Ref: 155-23
- WEBI steel pulley / sheave with rotating hook for construction site, for use on scaffolding up to 49mm (1 1/2") diameter
- Plain bearing
- Material finish steel pulley with galvanised steel housing, steel hook with security spring
- Hook load capacities 140 kg and 200 kg (manual operation only)
- Width of groove on pulley to suit 16-20 mm or 20-25 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED
Spec
Model | Capacity | Pulley Diameter | Rope Diameter |
155-23-1 | 200 kg | 140 mm | 16-20 mm |
155-23-2 | 250 kg | 200 mm | 20-25 mm |
