10.0t Lightweight Hydraulic Drum Jacks

New Stock Arriving Soon

Please email sales@cabledrumjacks.co.uk to reserve your order now!

Contact the sales team direct 0800 9880112

Pre-order
Original price £1,800.00 Inc Vat - Original price £1,932.00 Inc Vat
Original price
£1,800.00 Inc Vat
£1,800.00 Inc Vat - £1,932.00 Inc Vat
Current price £1,800.00 Inc Vat
SKU 107-1-3
Spindle Bar Length: 2.1m

10.0t (10,000kg) Lightweight Hydraulic Drum Jacks

Lightweight hydraulic drum jacks which are almost indispensable for use in dispensing cable from cable drums in the cable yard or on site. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person.

  •  Supplied complete with *2.1m spindle bar and locking collars as standard
  • 10t Capacity Spindle Bar Diameter 76mm, Length 2100mm, Weight 53Kgs (supplied as standard).
  • *Optionally available with either 2.8m or 3.1m Spindle Bar - please contact sales@cabledrumjacks.co.uk to request a quotation. You can order though the website but lead-time and additional freight /shipping costs will be confirmed after point of order.

 Also available as , 3t Jacks and 6t Jacks

JACKITUP

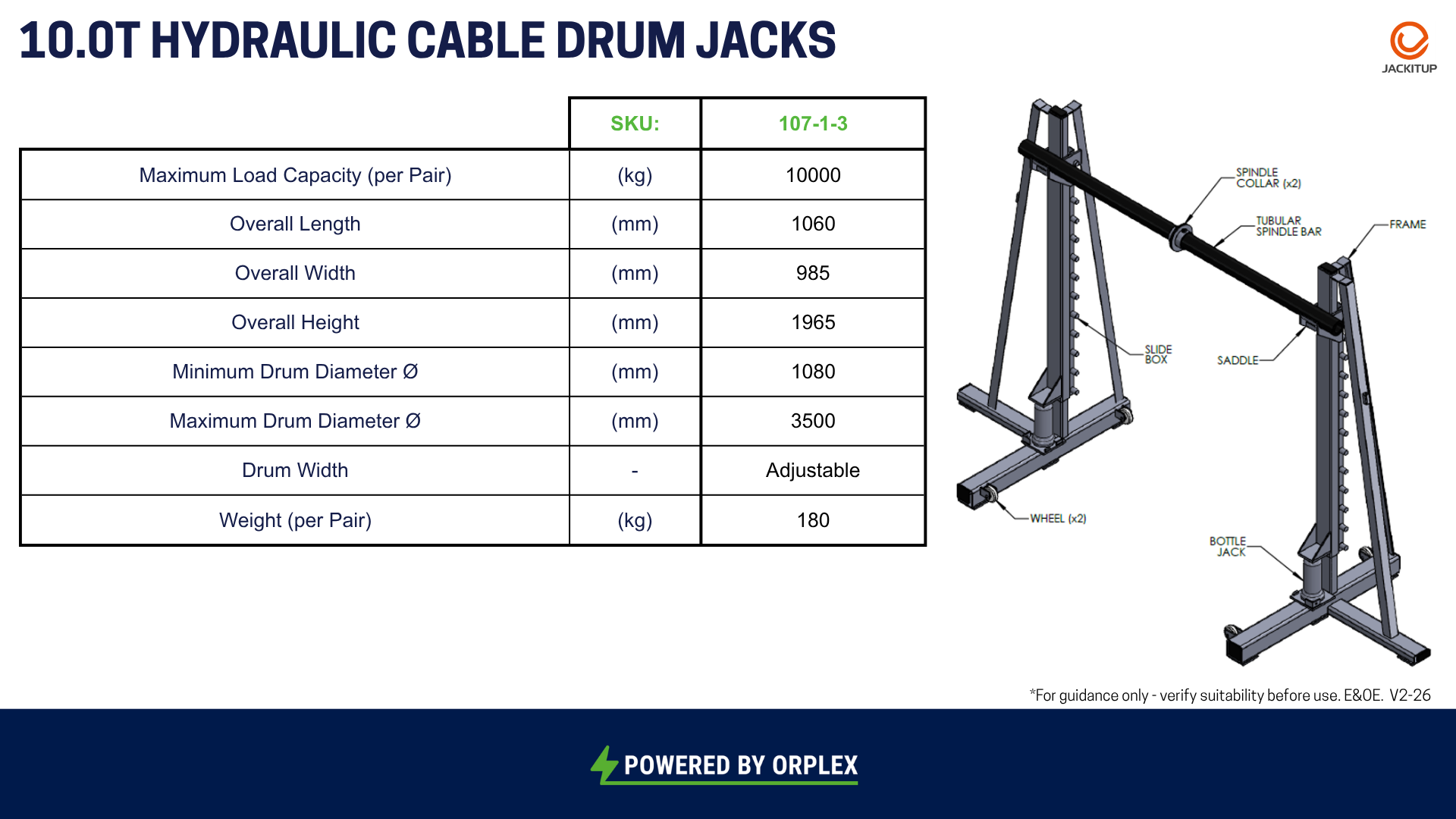

Spec


CAPACITY (COMBINED PER PAIR) 10.0t
MAX DRUM DIA 3500mm
MIN DRUM DIA 1080mm
BASE SIZE 1060mm x 985mm
WEIGHT (PAIR) with 2.1m Spindle Bar 180kg



Tech Area

10T Hydraulic data Sheet

Hydraulic operation manual



Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
