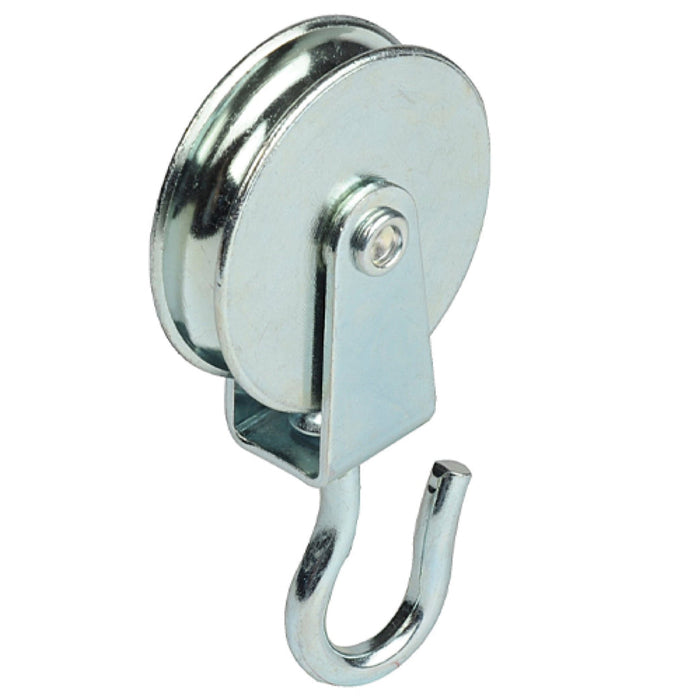

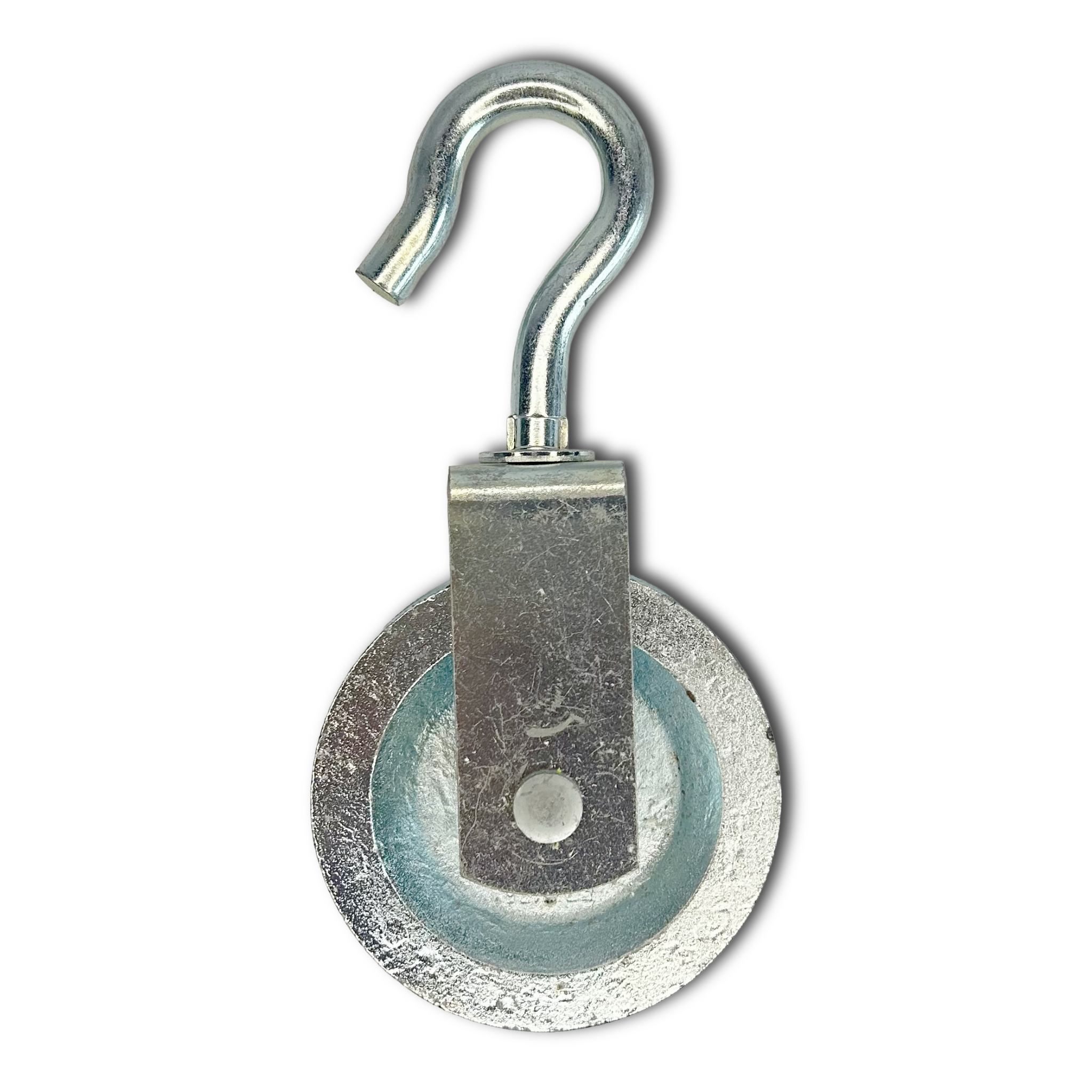

WEBI Pulley Type ETT-198 - Steel or Galvanised Cast Iron Pulley with Rotating Hook (ETTER) Ref: 155-20
- WEBI steel or galvanised cast iron single pulley / sheave with rotating hook
- Plain bearing
- Material finish - steel for sizes 30, 40, 50 and 60, galvanised cast iron for sizes 80 and 100
- Capacities available from 15kg through to 70kg
- To suit 5 mm through to 16 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED

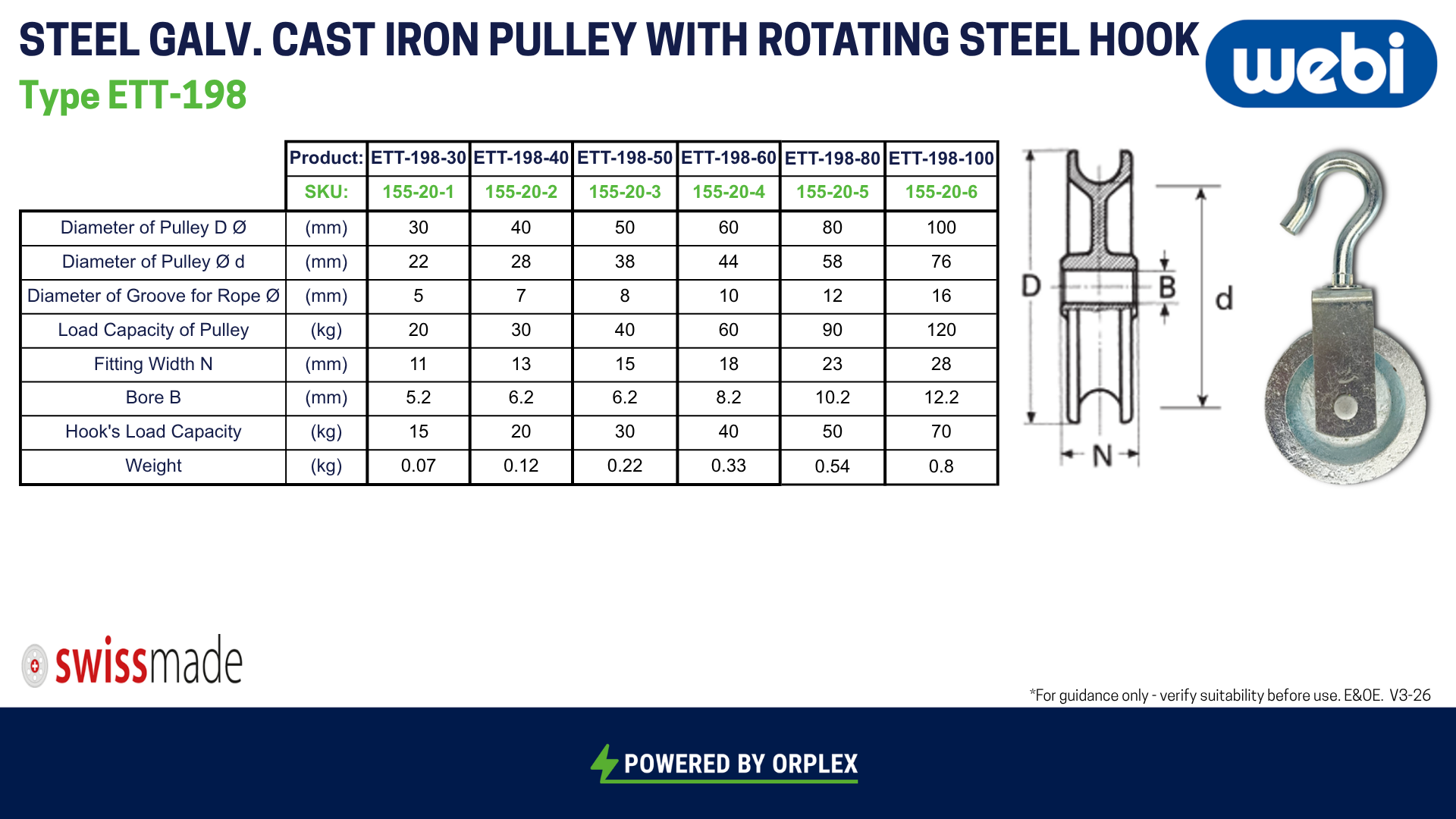

Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-20-1 |
15 kg |
30 mm |
5 mm |
155-20-2 |
20 kg |
40 mm |
7 mm |
155-20-3 |
30 kg |
50 mm |
8 mm |
155-20-4 |
40 kg |
60 mm |
10 mm |
155-20-5 |
50 kg |
80 mm |
12 mm |
155-20-6 |
70 kg |
100 mm |
16 mm |
Downloads
Pulley Cat 2018
Etter 198 Pulley Data Sheet
