6T Lightweight Hydraulic Drum Jacks

£1,136.00

SKU :107-1-2

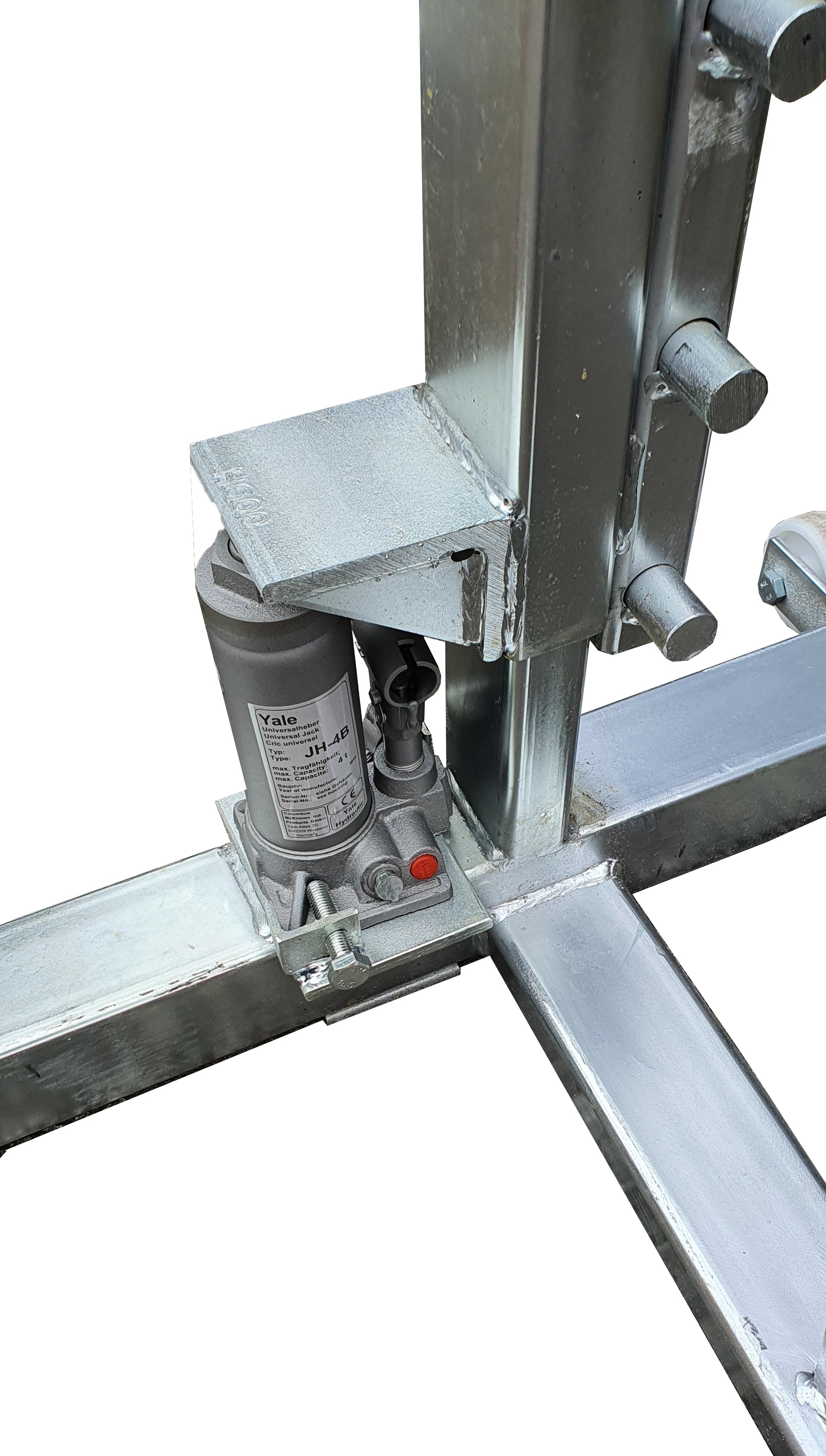

Lightweight hydraulic drum jacks which are almost indispensable for use in the cable yard. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person.



 Supplied complete with spindle bar and locking collars

  •  50mm 1.8m Spindle Bar and 50mm Locking Collars
  • Also available as , 3t Jacks and 10t Jacks



JACKITUP

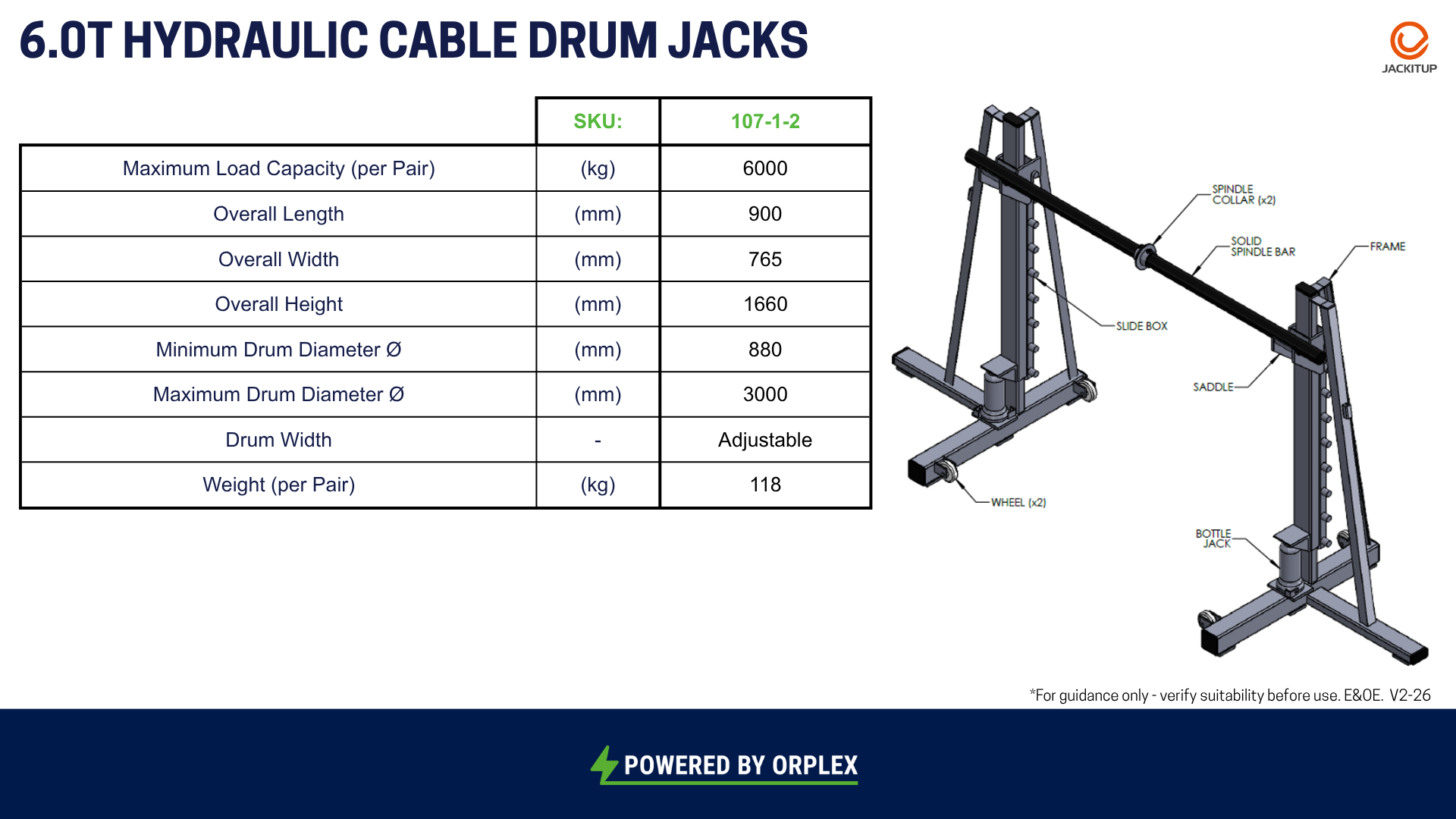

Spec


CAPACITY (COMBINED PER PAIR) 6T
MAX DRUM DIA 3000mm
MIN DRUM DIA 880mm
BASE SIZE 900mm x 765mm
WEIGHT (PAIR) 118kg



Tech Area

6T Hydraulic data Sheet

Hydraulic operation manual



Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
