RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m

RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m

by Runpotec

Delivery Lead-Time from Order

The current lead-time for this product from order is 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@cabledrumjacks.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

£1,536.00 - £1,536.00
£1,536.00
£1,536.00 - £1,536.00
£1,536.00
SKU 123-1-11

Description

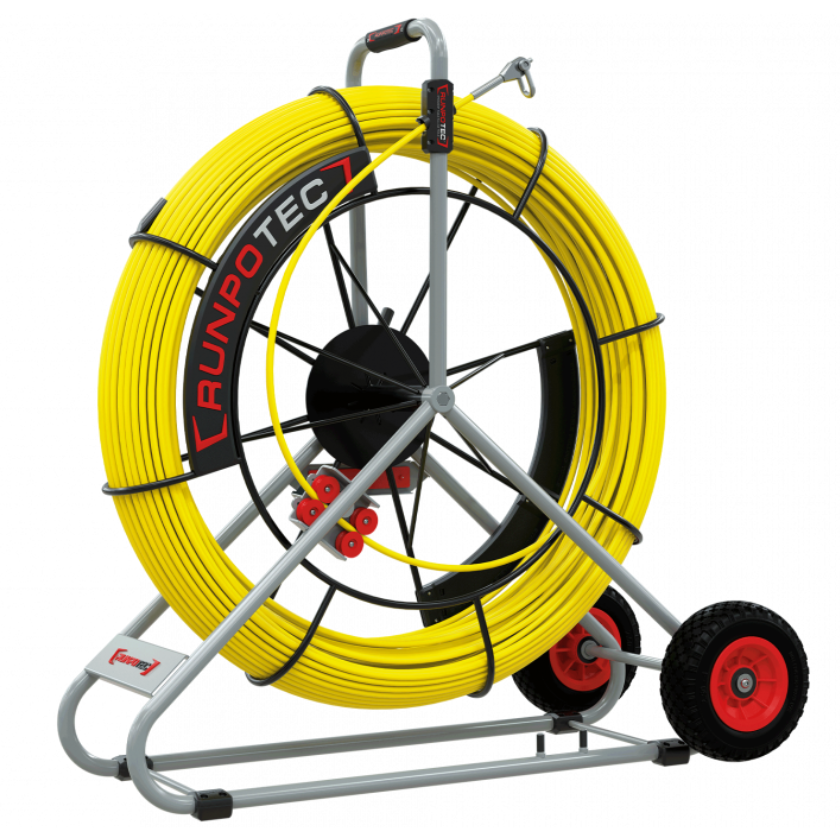

Cable puller glass fibre rod Ø 11 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (galvanised/powder coated) Ø 1000 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling sleeves, multifunction camera RC 2 and the like. Glass fibre rod total breaking load 6200 kg, total breaking load 580 kg.
Optimal field of application: for pipe diameters 80 - 250 mm
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 piece of glass fibre rod Ø 11 mm with steel reel and new double outlet system, end sleeves on both sides (start/end),1 x metre counter, 1 x shackle
ADVANTAGES

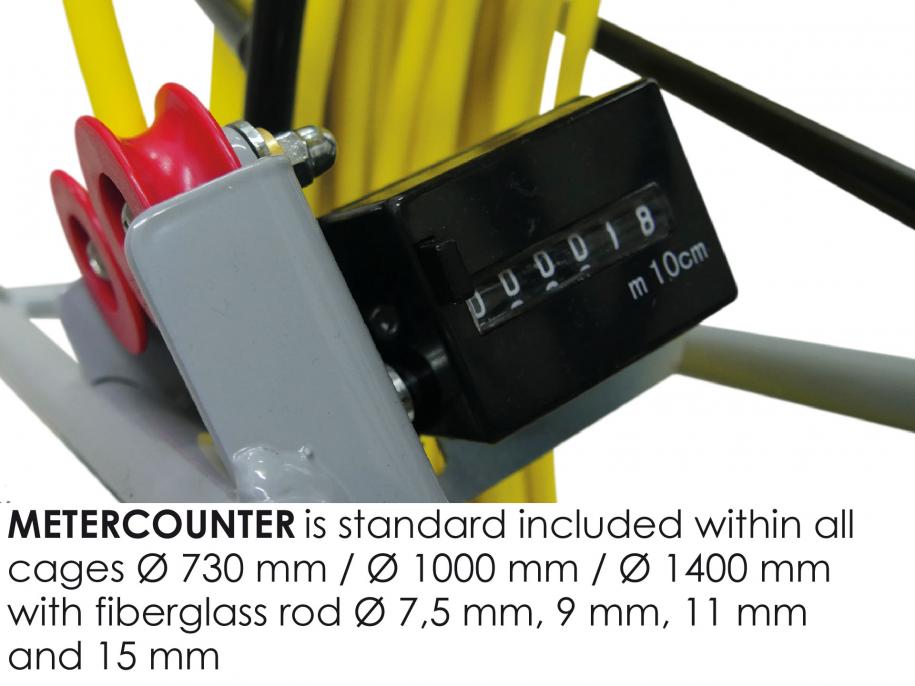

  • incl. steel reel and metre counter

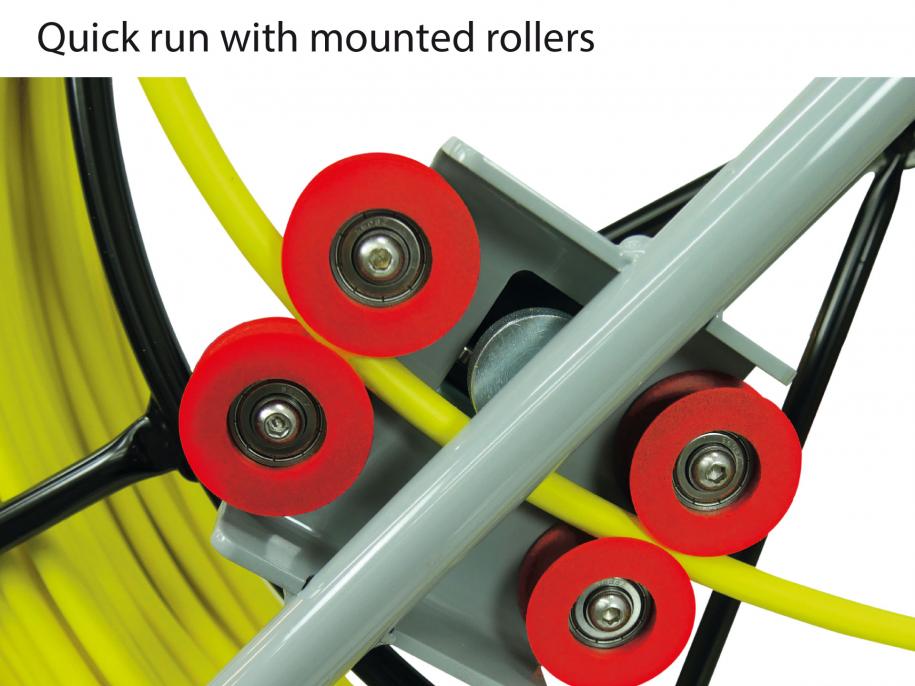

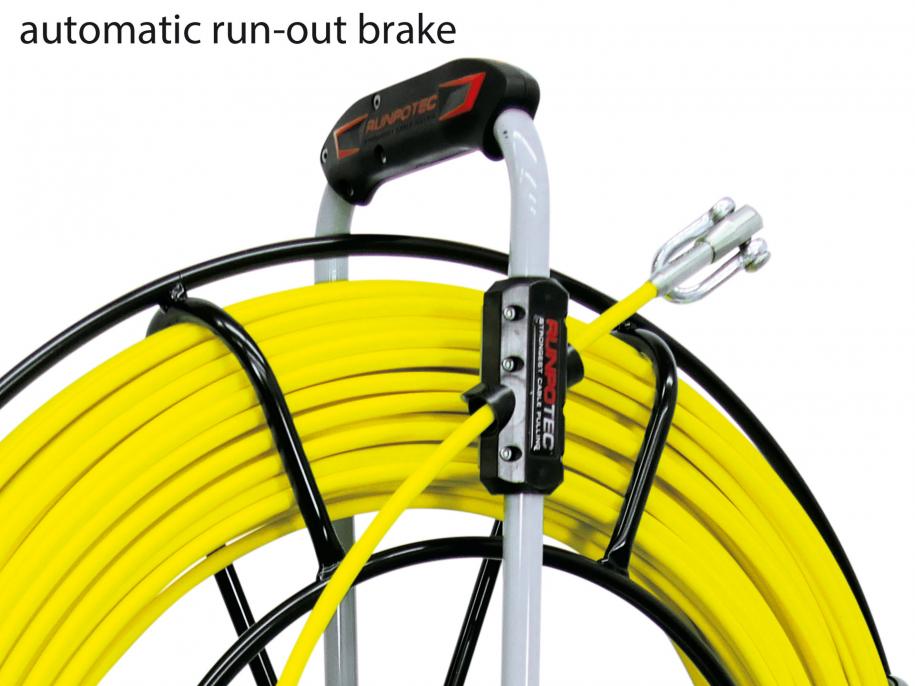

  • Double run-out system (automatic run-out brake and fast run-out)
  • Additional parking brake
  • Glass fibre rod total breaking load up to 6200 kg
  • Total breaking load 580 kg
  • Bending radius 770 mm

Spec

Dimensions: L 1100 x B 1100 x H 560 mm
Length: 300 Meter
Bending radius: 770 mm
Recommended tube-Ø: 80 - 250 mm
Weight: 59,60 kg
Total tension load: 580 kg
Material: fiberglass core with PP sheath
Ø Rod: 11 mm
EAN-Code: 9120045474534


Tech Area

Duct rod data sheetProduct Data Sheet
