RUNPOTEC - FIBERGLASS ROD Ø 7,5 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM
Need Help?
If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@cabledrumjacks

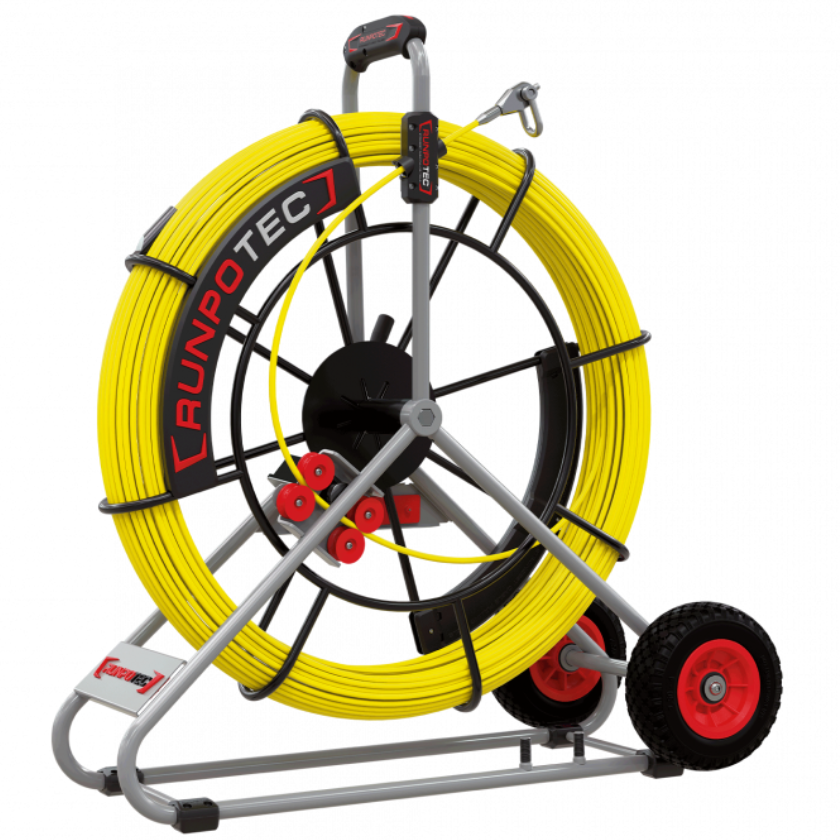

Cable puller glass fibre rod Ø 7.5 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (galvanised/powder coated) Ø 730 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling sleeves, multifunction camera RC 2 and the like. Fibreglass rod total breaking load 3400 kg, total breaking load 400 kg.
Optimal field of application: for pipe diameters 50 mm - 120 mm.
Application film: a short, very informative application film can be viewed by scanning the QR Code or on www.runpotec.com
Scope of delivery: 1 piece of glass fibre rod Ø 7.5 mm with steel reel and new double outlet system, end sleeves on both sides (start/end),1 x metre counter, 1 x shackle
ADVANTAGES

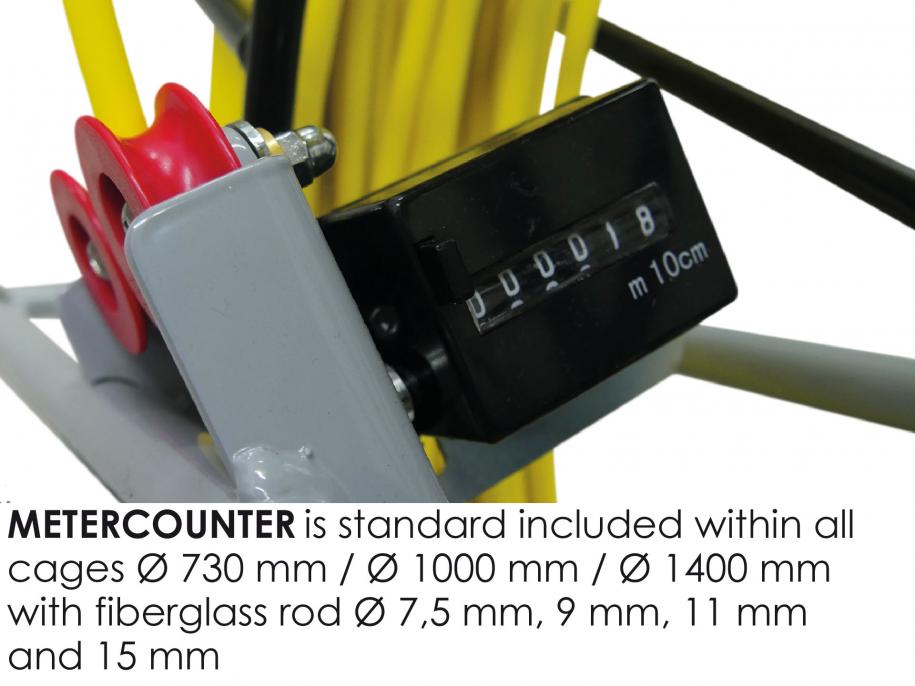

- incl. steel reel and metre counter

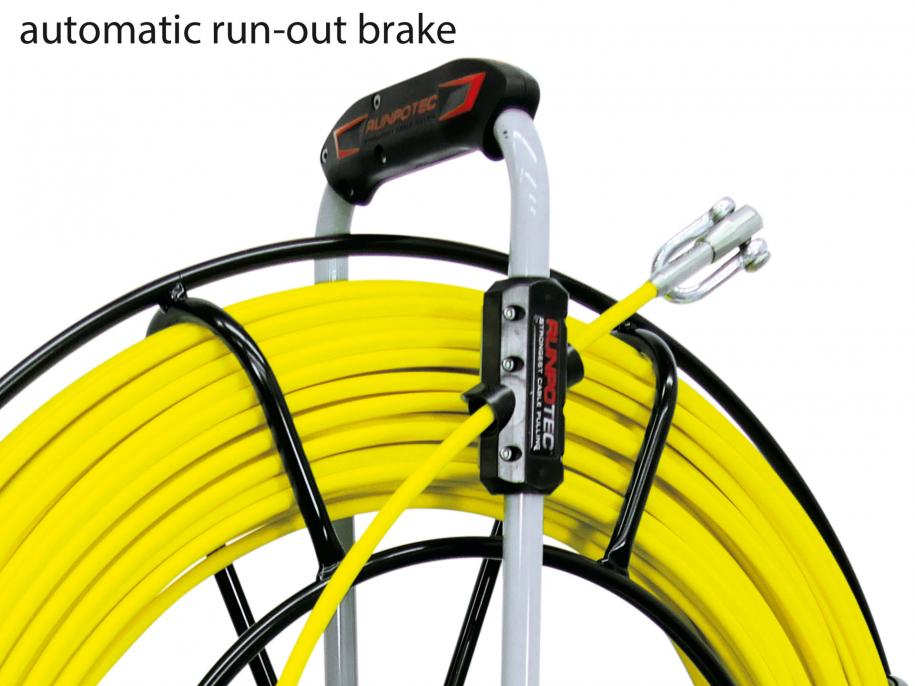

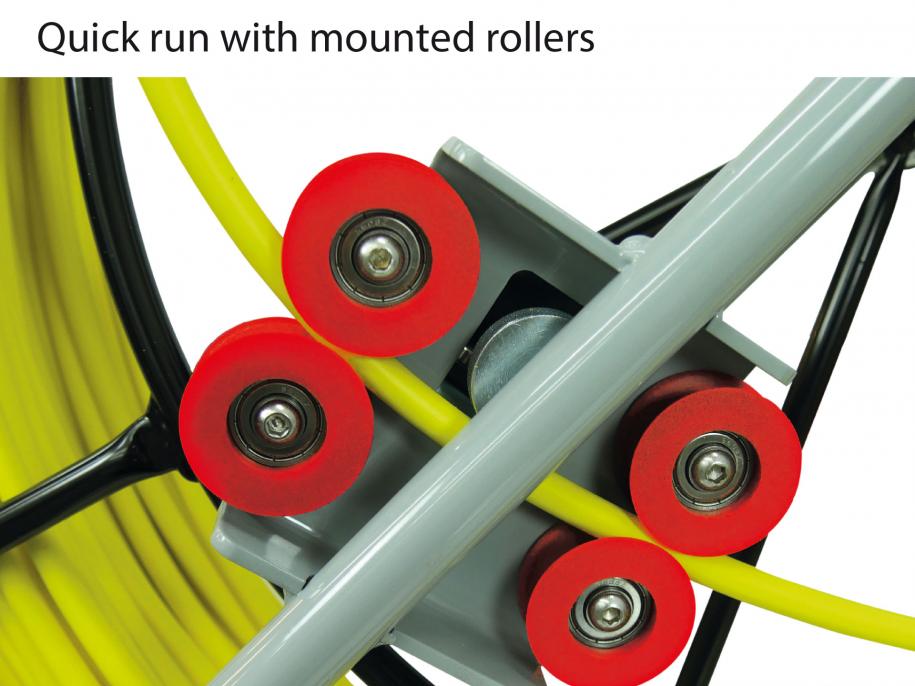

- Double run-out system (automatic run-out brake and fast run-out)
- Additional parking brake
- Glass fibre rod total breaking load up to 3400 kg
- Total service load 400 kg
- Bending radius 500 mm
Spec
| Dimensions: | L 840 x B 920 x H 410 mm |
| Length: | 120 Meter |
| Bending radius: | 500 mm |
| Recommended tube-Ø: | 50 - 120 mm |
| Weight: | 14,80 kg |
| Total tension load: | 400 kg |
| Material: | fiberglass core with PP sheath |
| Ø Rod: | 7,5 mm |
| EAN-Code: | 9120045474428 |
Tech area
Product Data Sheet
Video
