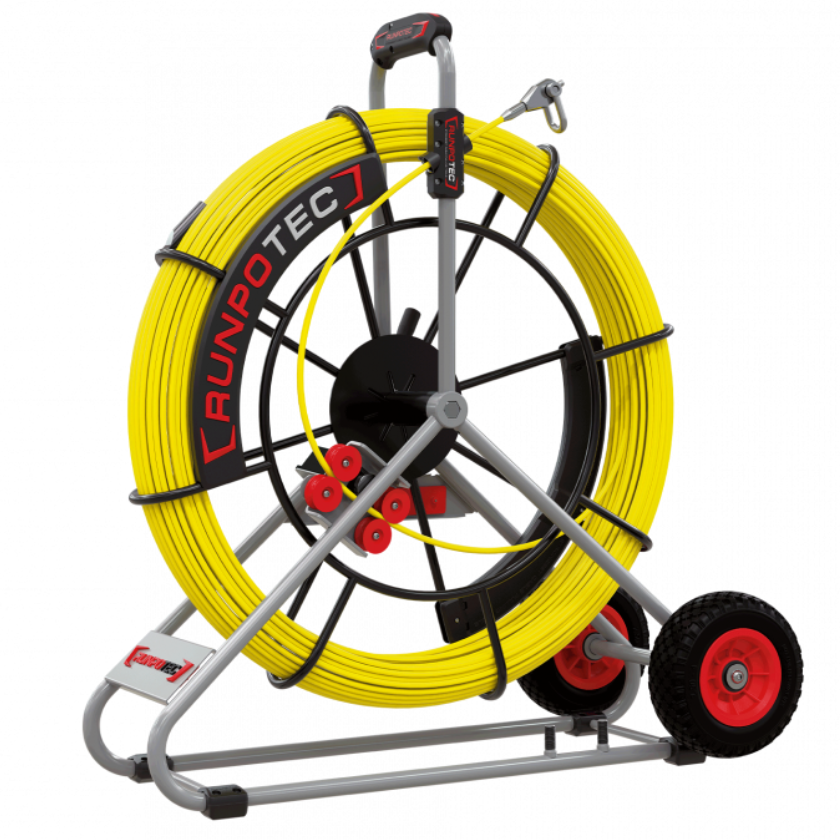

FIBERGLASS ROD Ø 9MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 150m
Cable puller glass fibre rod Ø 9 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (galvanised/powder coated) Ø 730 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling sleeves, multifunction camera RC 2 and the like. Fibreglass rod total breaking load 3400 kg, total breaking load 400 kg.
Optimal field of application: for pipe diameters 50 mm - 120 mm.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 piece of glass fibre rod Ø 9 mm with steel reel and new double outlet system, end sleeves on both sides (start/end),1 x metre counter, 1 x shackle

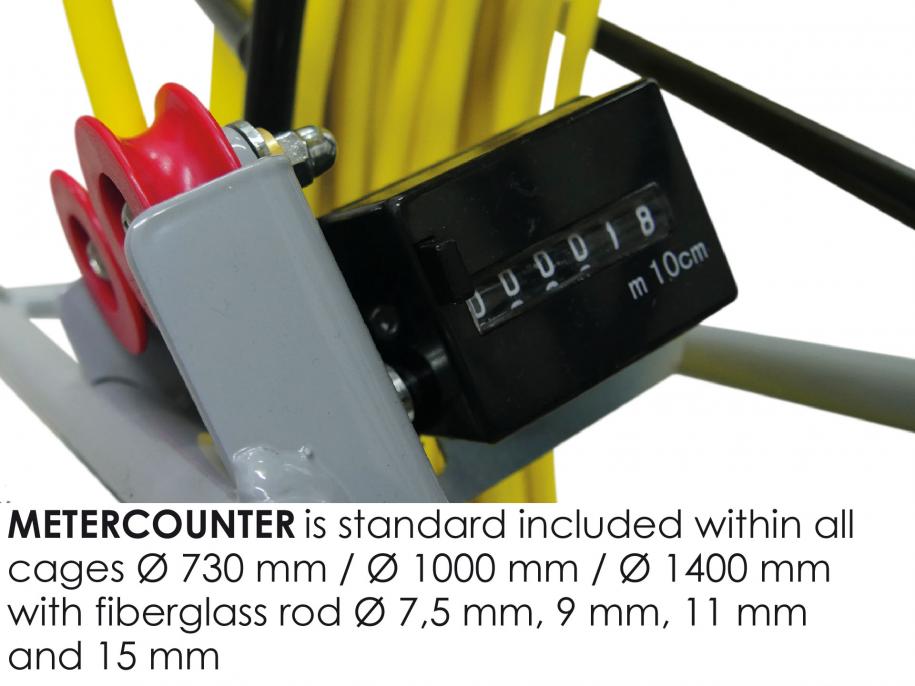

- incl. steel reel and metre counter

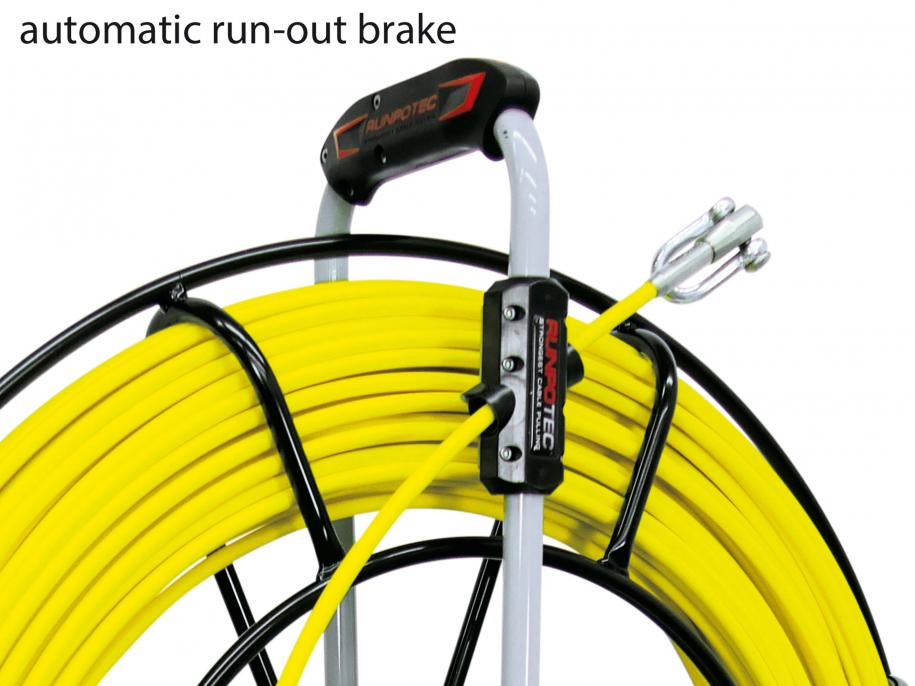

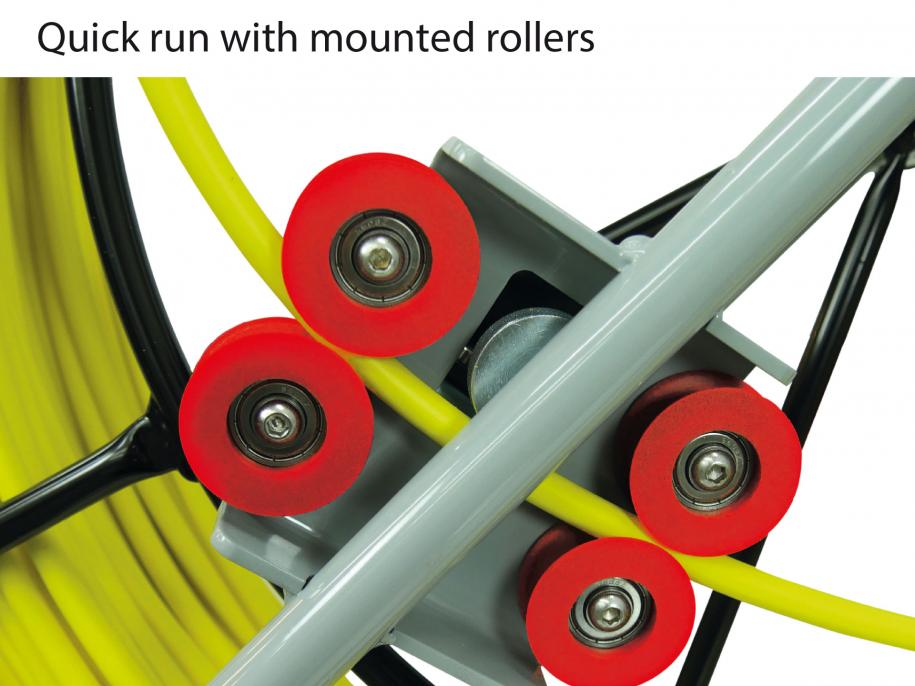

- Double run-out system (automatic run-out brake and fast run-out)
- Additional parking brake
- Glass fibre rod total breaking load up to 4500 kg
- Total towing capacity 460 kg
- Bending radius 620 mm

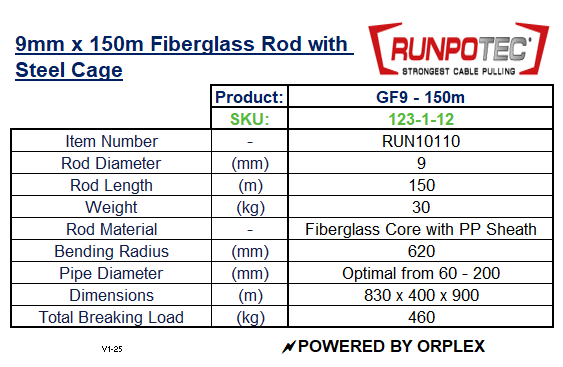

|Dimensions:||L 840 x B 920 x H 410 mm|
|Bending radius:||620 mm|
|Recommended tube-Ø:||60 - 200 mm|
|Total tension load:||460 kg|
|Material:||fiberglass core with PP sheath|
|Ø Rod:||9 mm|
