Single Swing Side Pulley Sheave 76mm (Snatch Block for 10mm Rope)

SKU 167-14-3
Availability:
Only 3 left!
Original price £78.00 - Original price £78.00
Original price
£78.00
£78.00 - £78.00
Current price £78.00

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@cabledrumjacks

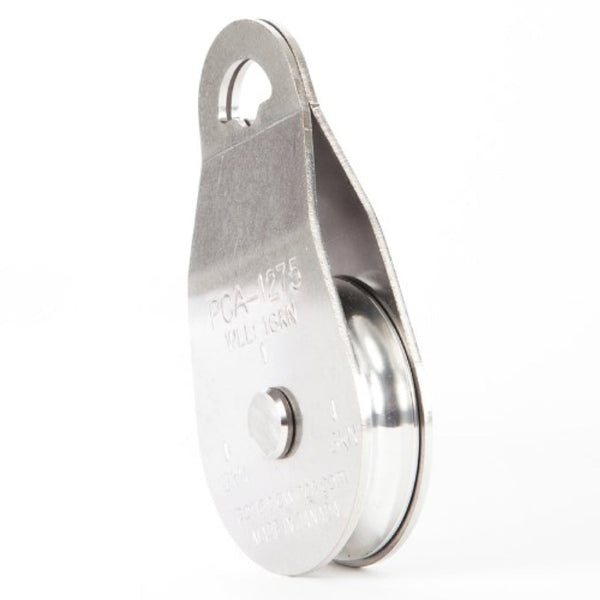

Single Swing Side Pulley Sheave 76 MM Ref: 167-14-3 (Snatch Block)

This stainless steel swing side snatch block features a lightweight 76 mm diameter deep groove aluminium sheave, with stainless steel plates that swing open to install rope. Sintered bronze bushing on stainless steel shaft provides 98% efficiency.

Particularly useful for use when doubling the line, the rope cannot accidentally come out of the block. Also very useful to redirect a load or to pull upward in a hill. Use the steel locking carabiners to anchor to a polyester sling. Smaller and lighter than the PCA-1274 pulley.

Ideal rope diameter: 10 mm.

SPECIFICATIONS

Minimum Breaking Load (metric) : 60 kN (6125 kg)
Working Load Limit (metric) : N/A
Material : Sides: Stainless steel. Sheave: Aluminium

WEIGHT & DIMENSIONS

Weight (metric) : 0,69 kg
Diameter (metric) : 76 mm
Length (metric) : 17 cm
Width (metric) : 11 cm
Height (metric) : 11 cm

ROPE

Minimum diameter (metric) : 6 mm
Maximum diameter (metric) : 10 mm

ADDITIONAL INFORMATION

Additional Information : Not designed for steel cable.
Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
