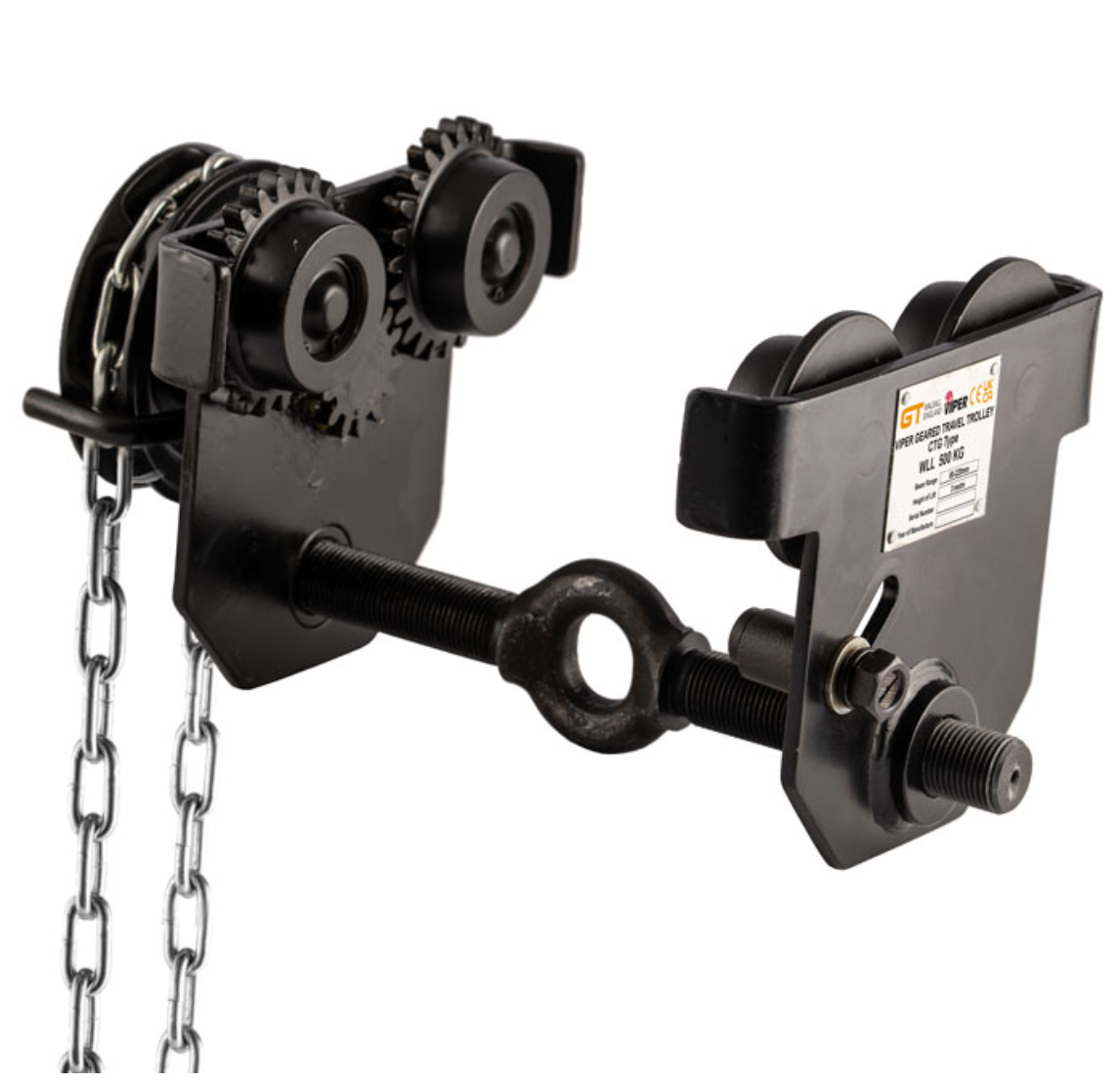

GT Viper Geared Travel Beam Trolley CTG Type - 3m HOL to BS-EN 13157

GT Viper Geared Travel Beam Trolley CTG Type - 3m HOL to BS-EN 13157

by Viper
SKU 286-523-10
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
£133.32 - £527.44
£133.32
£133.32 - £527.44
£133.32

You might need these ??

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@cabledrumjacks

Description

GT Viper Push Travel Beam Trolley CTG Type - CTG
  • Can be used with both manual and electric chain hoists.
  • Drop forged screw type adjuster enables safe and speedy adjustment.
  • Matt black finish (ideal for event rigging and production spaces).
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum breaking load is 4 times the W.L.L.
  • Lightweight robust construction.
  • High grade steel sealed ball bearings for precise and smooth rolling.
  • For use with hand and electric hoists.
  • All trolleys are designed for use with same capacity GT Heavy Duty and GT Viper chain blocks & lever hoists.
  • Side plates are produced with trolley wheel guards for additional safety.
  • Marked in accordance with BS EN 13157.
  • Certification - Declaration of Conformity

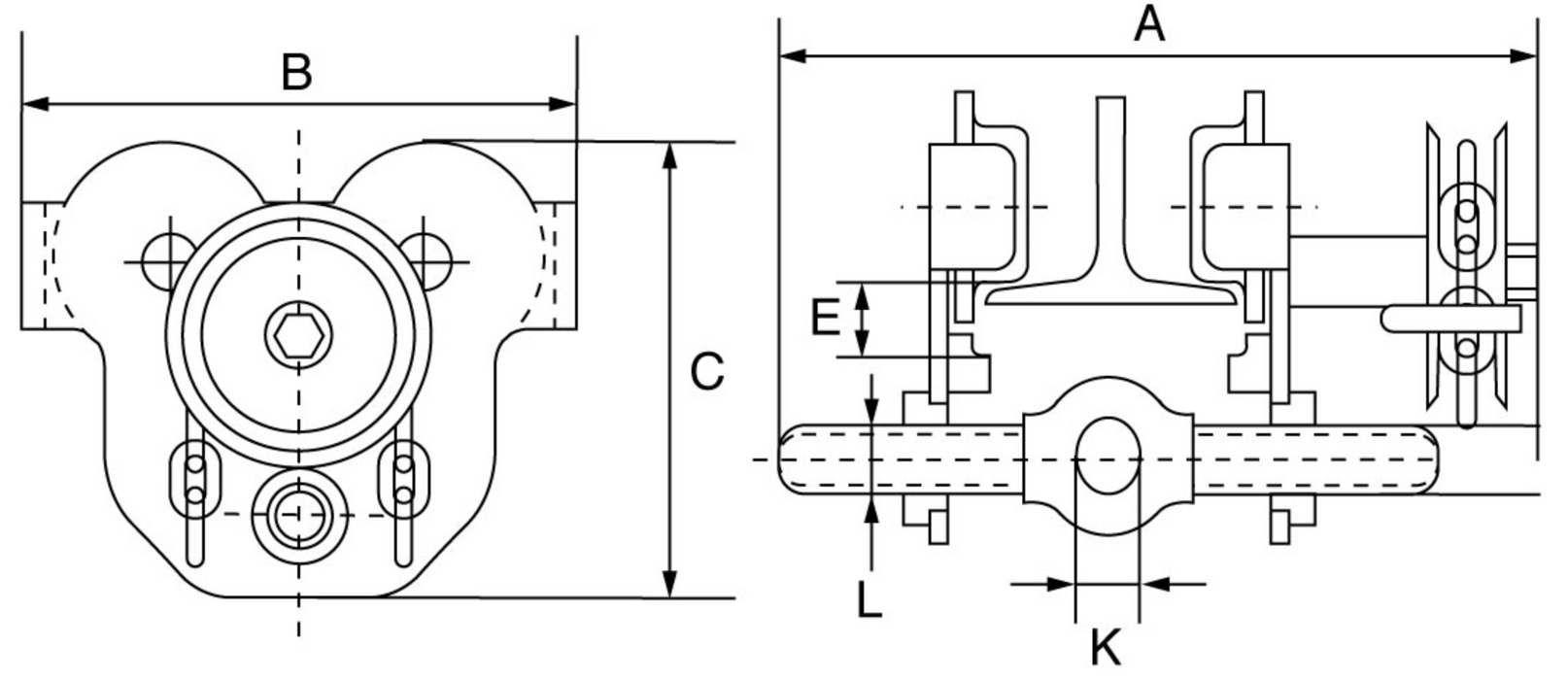

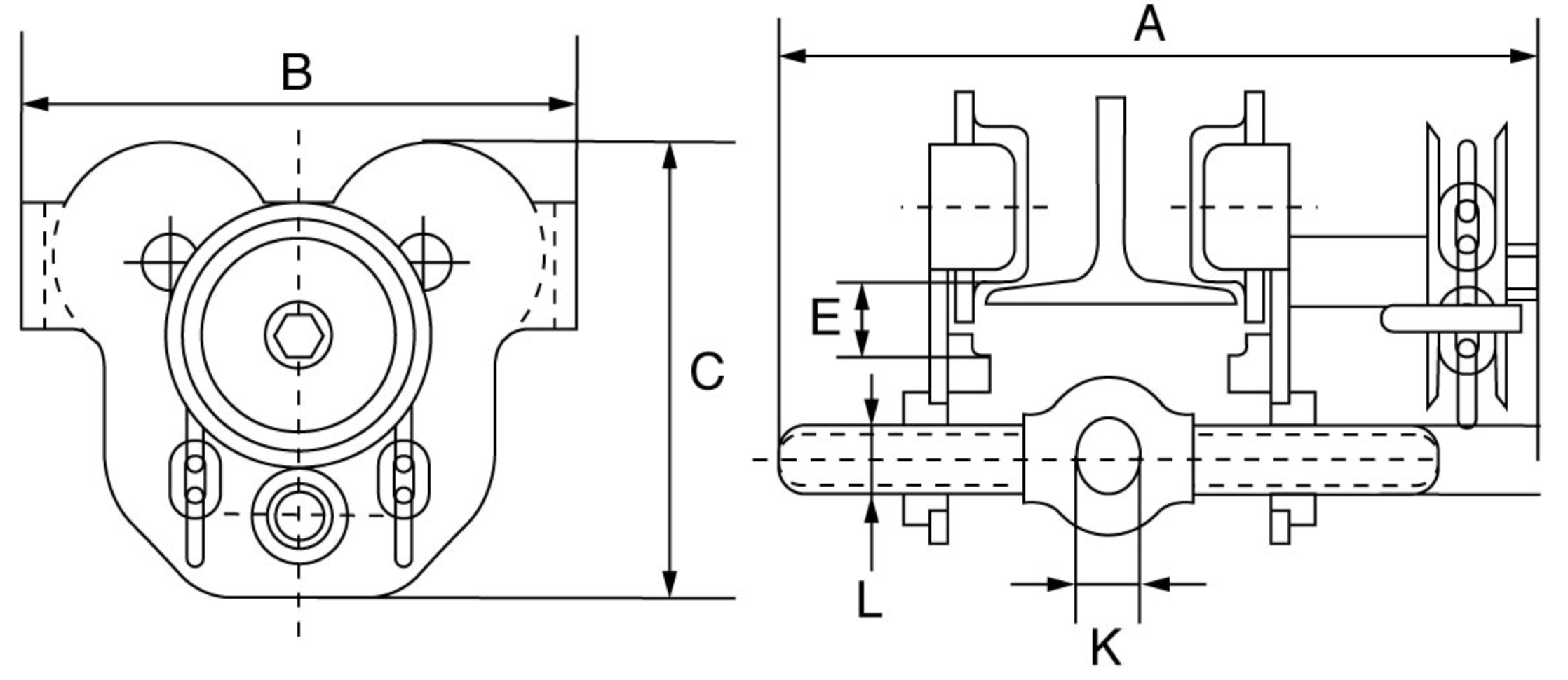

      Specification

      SKU W.L.L. Beam Range A B C E K L Weight
      kgs mm mm mm mm mm mm mm kgs
      286-523-10 500 50 - 220 353 200 175 20 30 25 9
      286-523-11 1,000 58 - 220 355 238 186 30 35 30 12.3
      286-523-12 2,000 66 - 220 362 270 215 30 47 40 18.2
      286-523-13 3,000 74 - 220 370 320 268 30 58 48 28
      286-523-14 5,000 90 - 220 390 365 306 32 70 60 41.2
