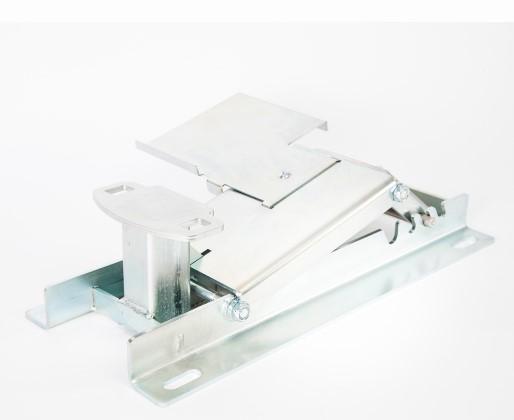

Vertical Pull Winch Support Ref: 167-16-13
Winch support with adjustable shelf and swivel pulley for vertical or horizontal pulling. Installs on PCA-1263, PCA-1265, PCA-1267, PCA-1501, PCA-1806. If used for horizontal pulling, the pivoting anchor (PCA-1332) is necessary (sold separately).
This accessory has been specially designed for lifting operations. It offers solid support and its pulley directs the rope vertically, which means sections of the tower or pylon far from the centre can be reached.
Thanks to its adjustable and detachable shelf, it is suitable for all winch models (except the PCH2000 for which you should choose the PCA-2264).
The PCA-1264 is compatible with many anchoring systems. For example, its 50.8 mm (2”) square tube can be installed on the anchoring system for trees/posts (PCA-1263), the adapter for the Heck-Peck system for European ball hitches (PCA-1265), square tubes (PCA-1267 and PCA-1501) or the support for pylons (PCA-1806).
In certain situations, you can use it to pull horizontally. In this case, you can use it in combination with pivoting anchor PCA-1332 (sold separately).
(Items sold separately).
NOTE: NOT COMPATIBLE WITH THE PCH2000 WINCH. USE THE PCA-2264 WITH THIS WINCH.
Can be used with the following winch models:
- PCW3000
- PCW3000-Li
- PCW5000
- PCW5000-HS
- PCH1000
SPECIFICATIONS
Material : Powder coated steel
WEIGHT & DIMENSIONS
Weight (metric) : 9,2 kg
Length (metric) : 61 cm
Width (metric) : 26 cm
ADDITIONAL INFORMATION
Additional Information : Equipped with a solid swivel pulley.
Additional information : Rope diameter when used for PULLING = 6 mm to 16 mm (1/4'' to 5/8''). Rope diameter when used for LIFTING = 12 mm to 13 mm (1/2''). NOTE: NOT COMPATIBLE WITH THE PCH2000 WINCH.
GTIN / EAN13 690581002335
