Corner Roller Ground Plate - Movable - For Cable Diameters up to 120mm

Corner Roller Ground Plate - Movable - For Cable Diameters up to 120mm

by Temha Makine
SKU 124-3-6
Availability:
Only 2 left!
£91.20 - £91.20
£91.20
£91.20 - £91.20
£91.20

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@cabledrumjacks

Description

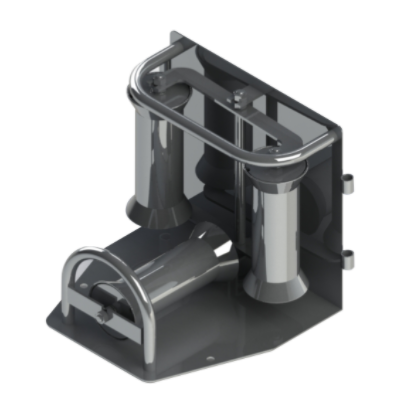

Corner Roller Ground Plate with design to suit up to 120mm diameter cables with a maximum load of 500kg

  • Suitable for cables up to 120mm diameter.
  • Maximum payload of 500kg.
  • Manufactured in high strength steel construction with galvanised finish.
  • Water proof ball bearings which are protected against dirt.
  • Can be joined using pins.
  • Movable freely depending on cable direction.
  • The two vertical rollers can pivot by about 15 degrees, which provides the user with more angular convenience.

Spec

Production Code 124-3-6
Payload (kg) 500
Max. Diameter (mm) 120
Weight (kg) 13.00
Length (mm) 370
Width (mm) 325
Height (mm) 270
