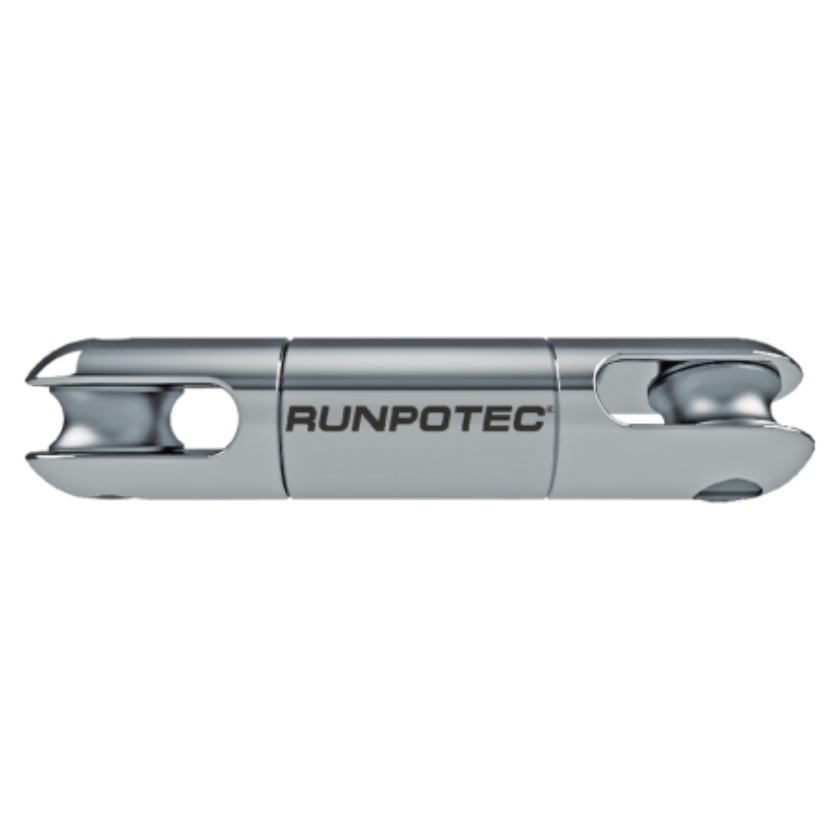

Connection Swirl With Swivel

£152.71

SKU :123-1-47

The connecting swivel is used to connect RUNPOTEC polyester pulling ropes with the cables to be pulled or the deployed pulling die and to ensure twist compensation. Ideally suited in combination with the RUNPOTEC CW 800 E capstan winch.

Made of stainless steel, with the highest quality ball bearings, make the connecting swivel from RUNPOTEC completely corrosion-free and thus one of the highest quality products on the market.
NOTE - THIS PRODUCT HAS A LEADTIME OF 3 TO 4 WEEKS FROM ORDER

Safety instructions:
Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal application: for horizontal cable pulling in combination with the CW 800 E capstan winch
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: Connecting swivel with twist adjustment

ADVANTAGES

    • Stainless steel
      Corrosion free
    • High quality ball bearings
    • Top price - performance ratio
    • Tensile load 1500 kg

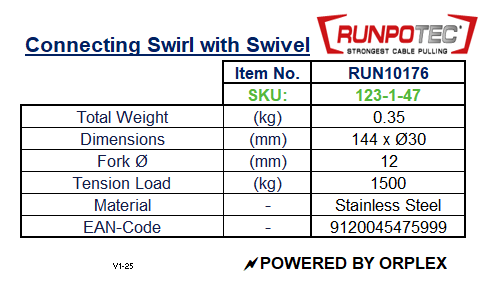

Spec

Dimensions: L 144 x B 30 x H 30 mm
Weight: 0,52 kg
Total tension load: 1500 kg
Fork-Ø: 12 mm
Material: Stainless steel
EAN-Code: 9120045475999



Tech Area

Duct rod data sheetProduct Data Sheet
