CDJ Double Decker A-Frame Cable Drum Stand Dispenser

The CDJ Double Decker A-Frame is the larger, heavy-duty version of the standard CDJ A-Frame cable dispenser.

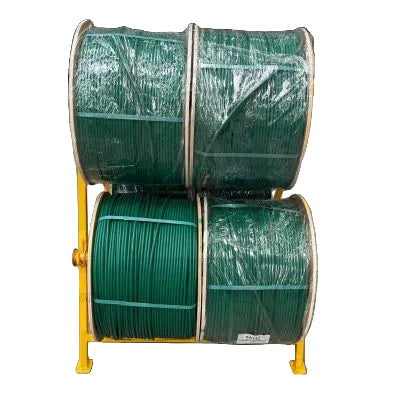

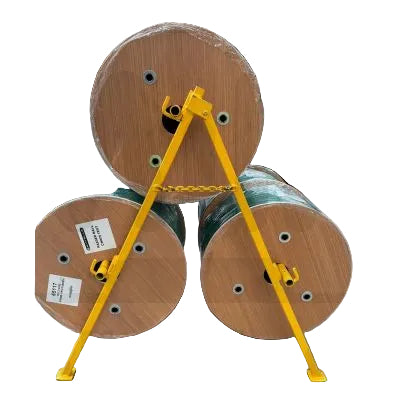

Featuring three cable bars, each capable of supporting 50kg, the CDJ Double Decker A-Frame is designed to allow multiple reels to be pulled and rewound simultaneously, including up to six microduct reels.

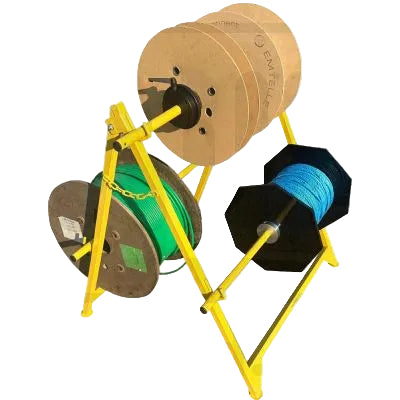

With a footprint of 800mm x 820mm and a height of 940mm, the frame is suitable (when guarded) for use on pavements and is ideal for dispensing up to six cable or microduct reels (up to 600mm diameter) at the same time. It is also well suited for dispensing and rewinding multiple reels of draw rope on ply reels or draw rope bobbins.

Dimensions

• 800L x 820W x 940H mm

• Weight: 13kg

Main Features

• Heavy-duty A-frame cable dispenser

• Yellow epoxy powder-coated 25mm steel construction

• 50mm circular feet for stability

• Highly portable

• Non-slip and secure design

Technical Specification

• Height (Floor to Bar): 940mm (when open)

• Width (Leg to Leg, Open): 800mm

• Maximum Drum Diameter: 820mm

• Cable Bar Length: 890mm

• Cable Diameter: 24mm OD

• Weight of Frame: 13kg

• Maximum Load: 150kg
