CABLEITUK Drawrope (on Ply Reel) 6mm x 500m

CABLEITUK Drawrope (on Ply Reel) 6mm x 500m

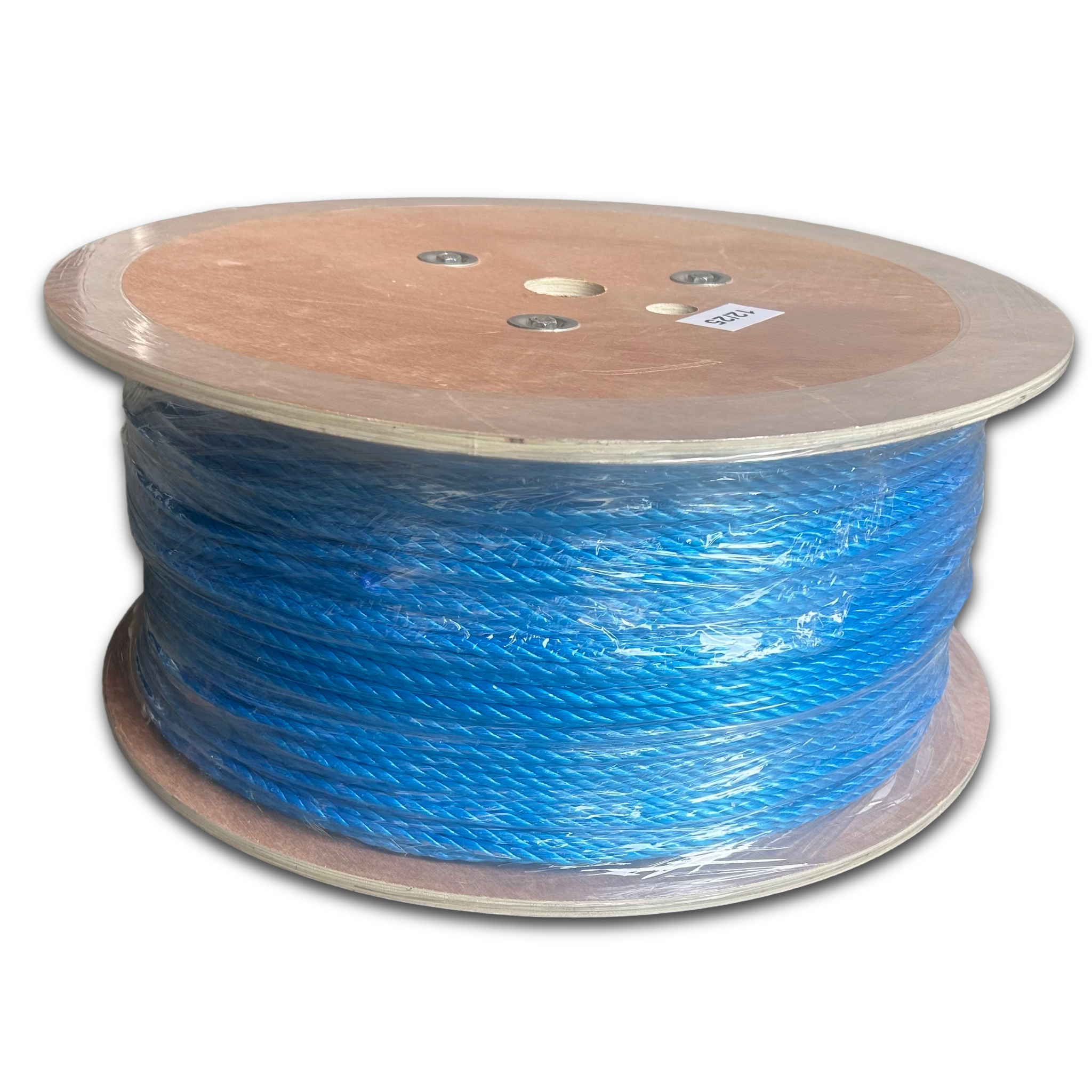

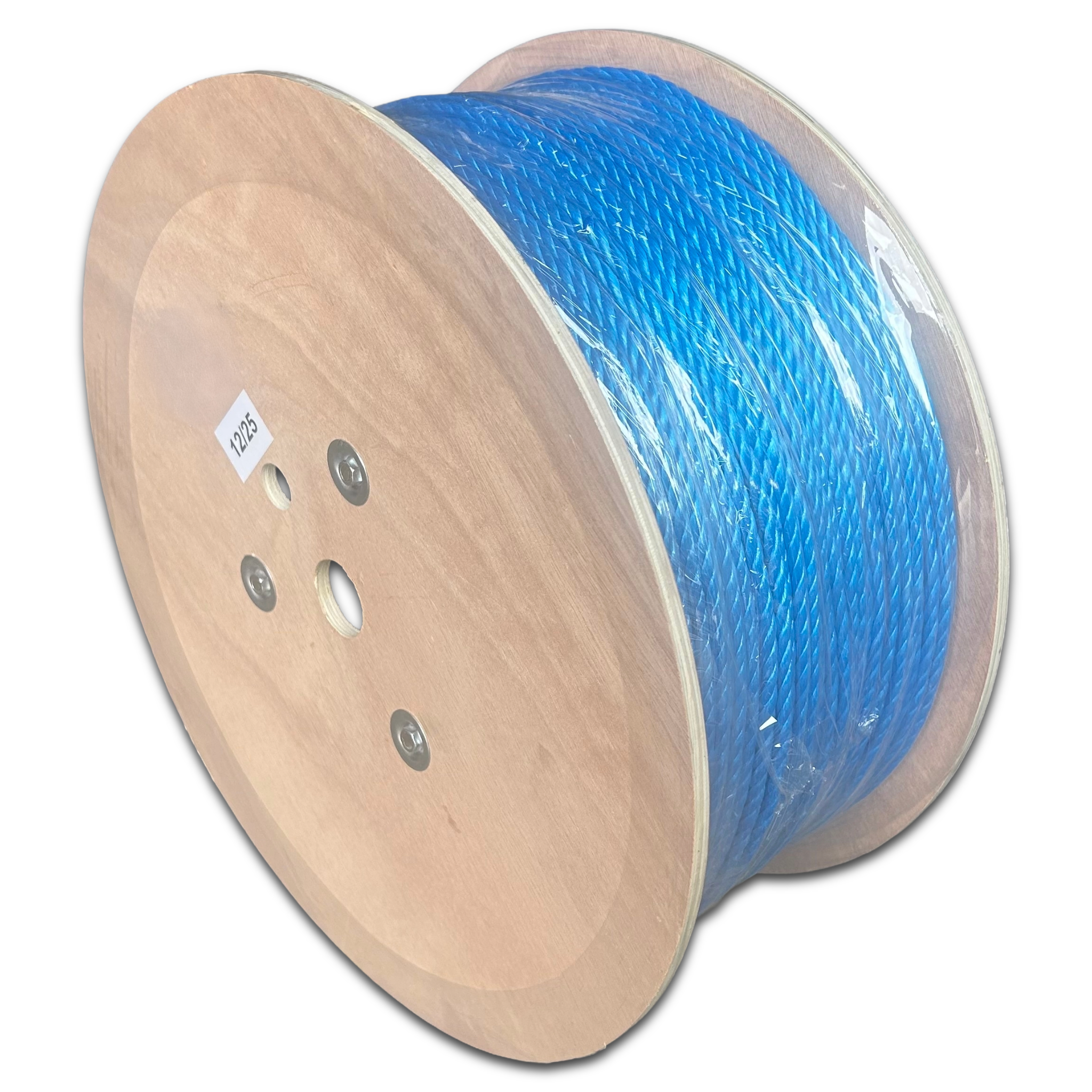

This 6mm x 500m Polypropylene Draw Rope is supplied on a robust wooden drum and is ideal for telecommunications, utilities, fibre optic installation, duct proving and cable pulling operations.

It's drum diameter of 395mm makes it suitable for use with the Drawrope Dispenser.

Manufactured from prime homo polypropylene, the rope offers excellent strength, low stretch characteristics and good resistance to moisture, making it suitable for use in underground duct networks and general cable installation projects. The blue colour provides good visibility on site, while the sturdy marine plywood drum allows for controlled deployment and storage.

Specification

• Rope Diameter: 6mm
• Rope Length: 500m
• Material: Prime Homo Polypropylene
• Colour: Blue
• Approximate Tensile Break Strength: 550kg
• Drum Construction: Marine Plywood Top and Bottom
• Drum Diameter: 395mm

Applications

• Telecommunications cable installation
• Fibre optic network deployment
• Utility cable pulling
• Duct proving and rodding operations
• General draw rope applications

Important: The quoted tensile break strength is a manufacturing test value used for quality control purposes only. This product is not certified or intended for lifting, hoisting or load-bearing applications.
