SKU :123-1-32

Load Bearing Capacity

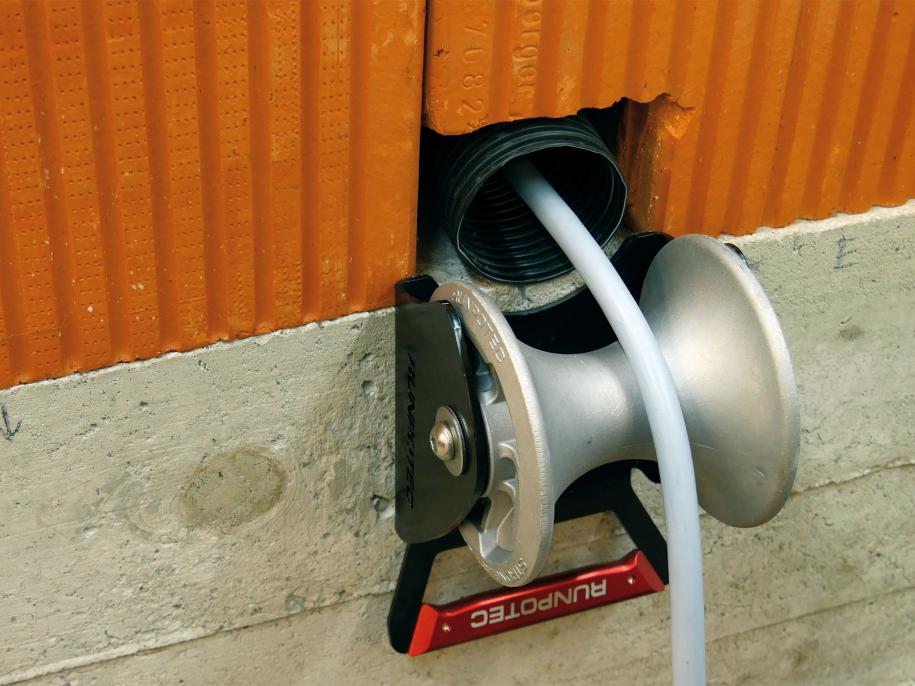

The cable guide roller - shaft is ideally suited for mounting in shafts to pull cables gently around corners with the least possible resistance. It can be secured in place with screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life.

Optimum area of application: to pull cables in shafts gently and effortlessly around corners
Application video: a short, very informative application video can be viewed by scanning the QR code or on
Scope of delivery: 1 x cable guide roller - shaft


  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP coating
  • Ergonomic aluminium carrying handle
  • Load capacity 1.500 kg




SKU 123-1-32
Dimensions: L 220,5 x B 155 x H 140 mm
Weight: 2,86 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 1500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm
EAN-Code: 9120045476385
