CABLE GUIDE ROLLER - 90 DEGREES

Sold out
£128.00

SKU :123-1-34

Load Bearing Capacity

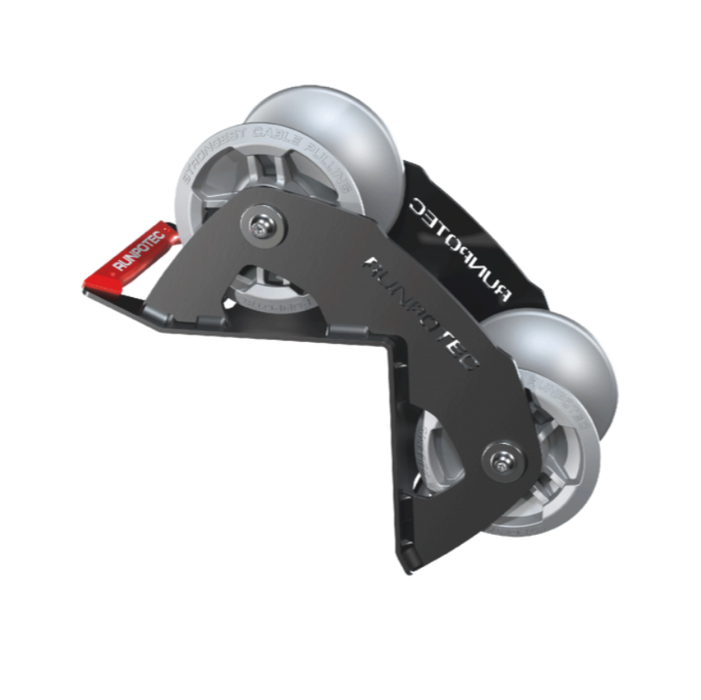

The 90° cable guide roller is ideally suited for use on various edges to pull cables gently around corners with the least possible resistance. It can be secured in place with a belt or screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the sturdy powder-coated steel frame guarantee a long service life.

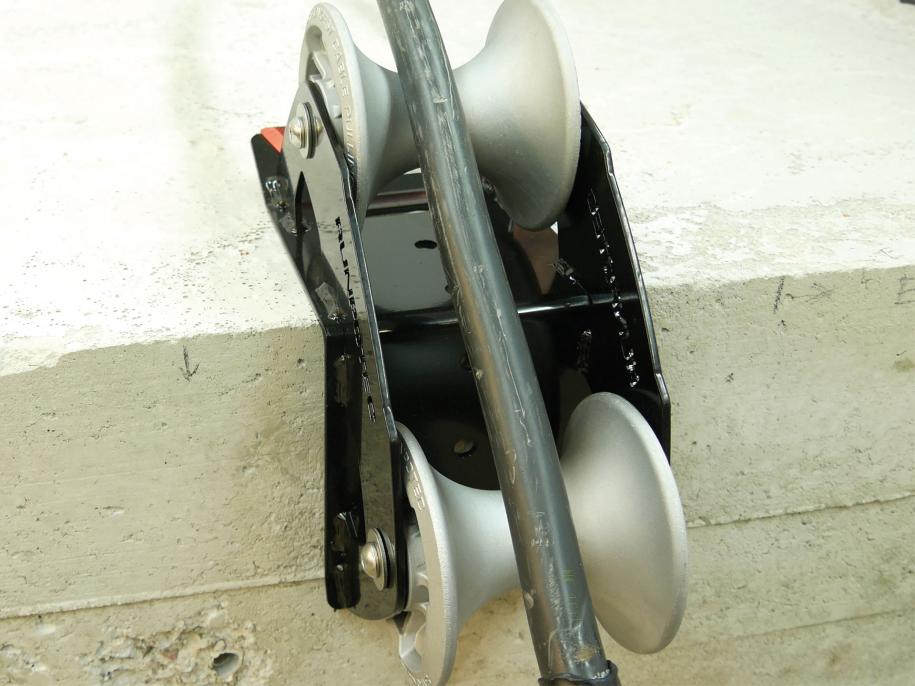

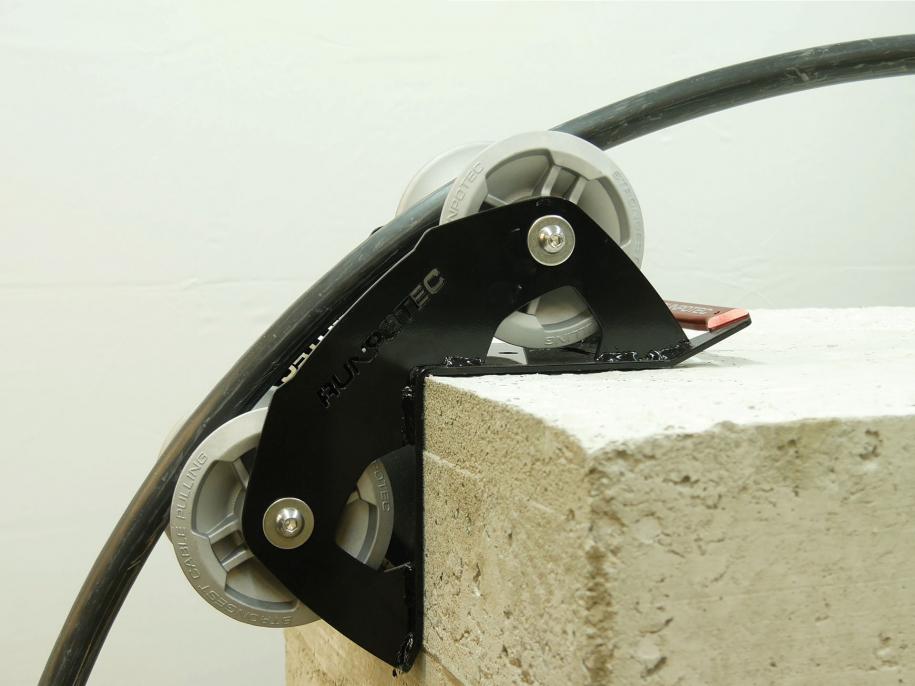

Optimum area of application: to pull cables gently and effortlessly around corners or edges
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x 90 degree cable guide roller

ADVANTAGES

  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP and powder coated
  • Ergonomic aluminium carrying handle
  • Load capacity 1.500 kg


Spec

Dimensions: L 360 x B 155 x H 140 mm
Weight: 6,47 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 1500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm
EAN-Code: 9120045476361
