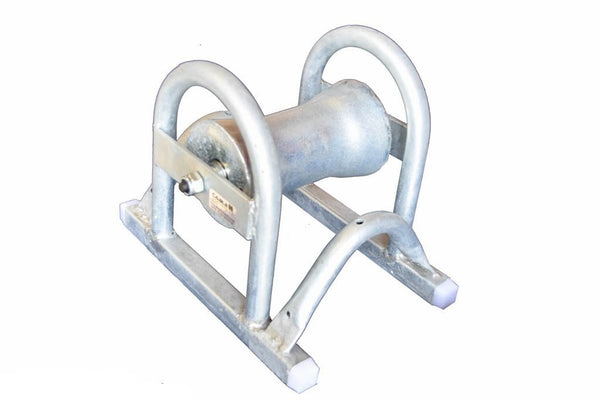

CDJ Bridge Roller
This is our standard Cable Bridge Roller, which can be placed over a cable up to 90mm diameter already laid in the trench.
Spec
MAX CABLE SIZE | 125mm dia |
MAX BRIDGING SIZE | 90mm dia |
ROLLER CONCTRUCTION | Zinc plated steel frame |
BASE SIZE | 350 x 230mm |
WEIGHT PER ROLLER | 4.5kg |
QUESTIONS & ANSWERS
Ask a Question-
Hi I'm after a set of bridged rollers for numerous cable pulls, the biggest cable in its own tray is 185mm 4 core then I have 185mm singles for a longer run and a 120mm 4 core. My tray work is in place length and width won't be issue but the roller assembly height need be max 350mm for access.
Hi, our bridgie roller is 240mm heigh so will be ok for your requirements.
