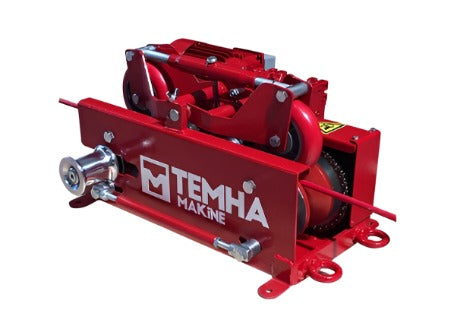

220v Electric Cable Pusher - 4KN - Cable Diameter 12 to 75mm
Please contact our sales team directly with all your quote requirements for this product.
Current lead-time for this product is 6-8 weeks from order. You can pre-order online and we will confirm the lead-time by email.
Alternatively for a tailored quotation either email sales@cabledrumjacks.co.uk or complete the request a quote form below.
Our team will require the following to provide a quote: Invoice / Billing and Shipping address - also a contact phone number.
The 220v powered cable feeder is designed for laying cables or underground ducts in open trenches, ducts or tunnels for new installations or during repair work.
- Driven by 220v Electric Motor
- For pushing cables which have outside diameters from 12mm to 75mm.
- Pushing Power 4kN
- Easy transport and installation
- Suitable for use in cable tray
- Unlimited speed option
- It can be used as a cable pulling machine
Spec
Pushing Power (kN) | 4 |
Pushing Speed (m/min) | 0-20 |
Cable dia. (mm) | 12mm to 75mm Outside Diameter |
Working procedure | Electric |
Motor | 220 V Electric Motor |
Length (mm) | 630 |
Width (mm) | 450 |
Height (mm) | 350 |
Weight (kg) | 52 |
