10.0t Lightweight Hydraulic Drum Jacks

The lightweight hydraulic drum jacks which are almost indispensable for use in paying off cable from cable drums the cable yard or on site. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person.

• Supplied complete with *2.1m length spindle bar and locking collars

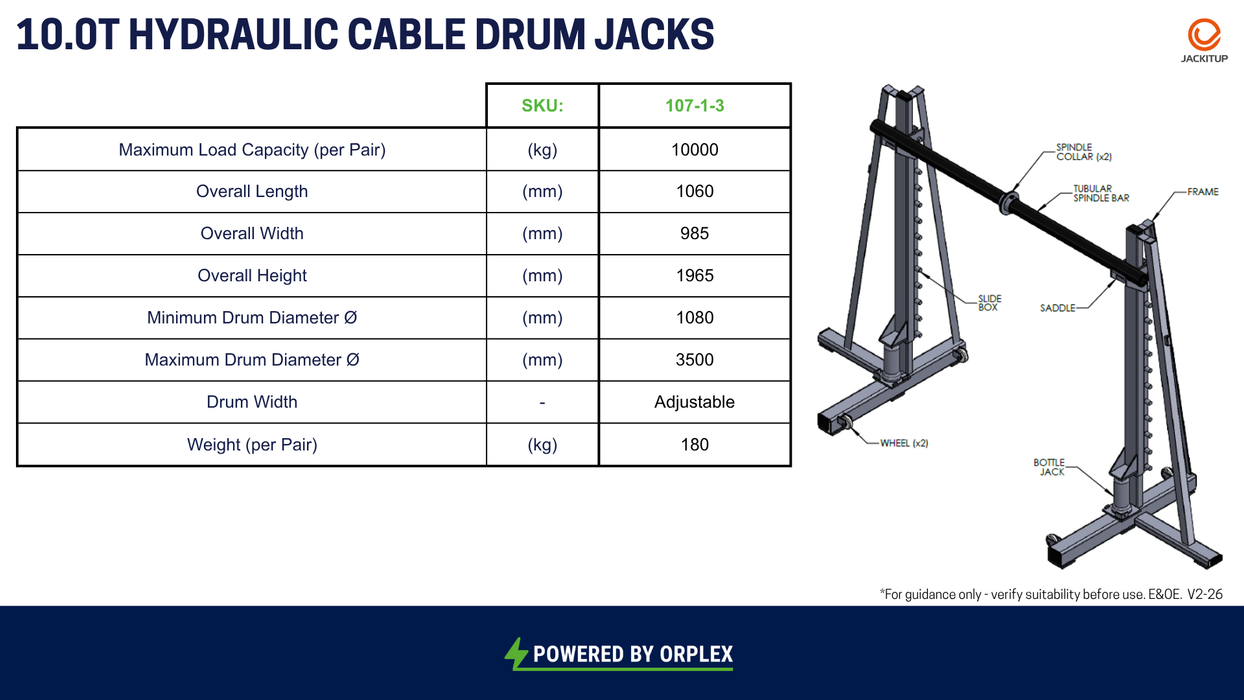

• 10t capacity Spindle Bar Diameter 76mm, Length 2100mm, Weight 53Kgs (2.1m length supplied as standard*).
• *10t capacity unit optionally available with either 2.8m or 3.1m Length Spindle Bar

Lightweight Hydraulic Jacks are available as 3t jack set, 6t jack set and 10t jack set

Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.

Download - Hydraulic_Jack_Manual_V2-26.pdf

Download - 10t_Hydraulic_Jacks_Spec_Download_V2-26.pdf
