Reel Lifter - 5443kg

Makes handling large cable reels quick and easy, on-site or in warehouses.

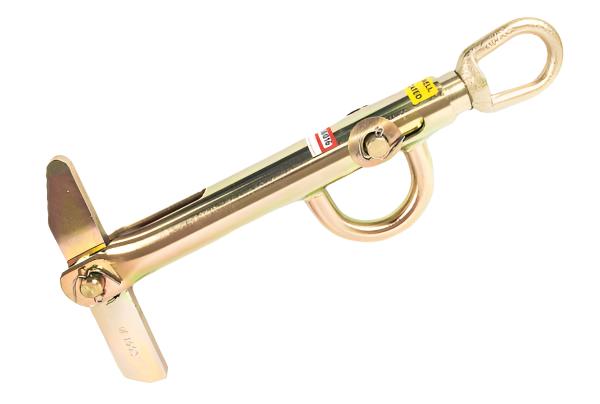

The Slingco Reel Lifter is a high capacity, compact unit that allows users in the utility construction industry to safely load, transport, and dispense wire and/or cable on-site. It is also used in many industrial applications to make moving and relocating reels in a warehouse easy. Now a task that normally used a team of three or four people can be done with just one, allowing the crew to operate more efficiently!

Features and benefits

• Rugged construction to lift and upend reels
• Easy rotation to unroll cable
• Counterweighted bottom arm for easy insertion in reel
• Side lifting eye allows reels to be put into a rolling or non-rolling position

General Operation:

A Slingco reel lifter is operated by first inserting the lifter into the central hole of a cable reel, then engaging the toggle bar using the lifting eye. Once the reel is stable, it can be flipped to a non-rolling position using the side flipping eye. The reel can then be lifted and moved using the lifting eye.

For a more detailed operational instructions please consult the operation manual. READ and UNDERSTAND all of the instructions and safety information in the manual before operating or servicing this tool.

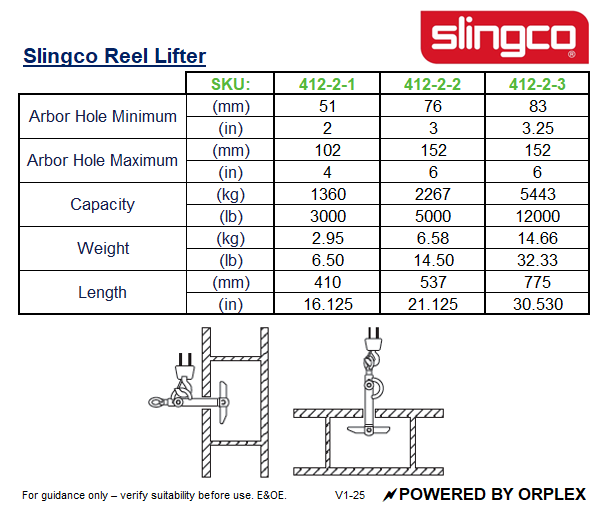

Download - Slingco_Reel_Lifter_Data_Sheet_v2-26.pdf
