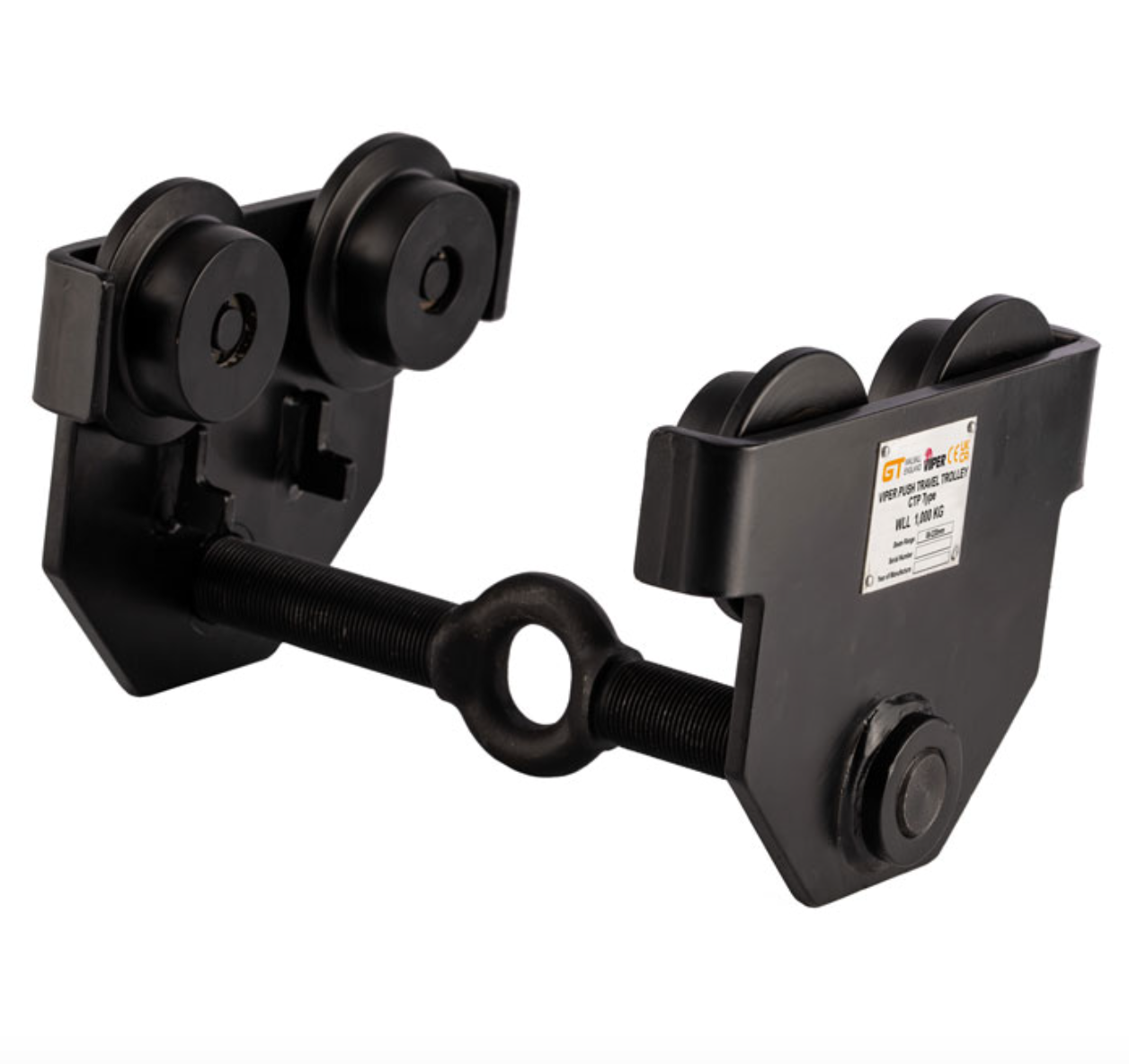

GT Viper Push Travel Beam Trolley CTP Type to BS-EN 13157

GT Viper Push Travel Beam Trolley CTP Type to BS-EN 13157

by Viper
SKU 286-523-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
£104.59 - £448.32
£104.59
£104.59 - £448.32
£104.59

You might need these ??

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@cabledrumjacks

Description

GT Viper Push Travel Beam Trolley - CTP Type -
  • Can be used with both manual and electric chain hoists.
  • Drop forged screw type adjuster enables safe and speedy adjustment
  • Heavy duty construction allows safe and secure grip on the beam.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13155.
  • Minimum breaking load is 4 times the W.L.L.
  • Easy and simple mounting.
  • Adjustable to fit a wide range of flange widths and beams.
  • Special jaw design applies the load away from the flange edge, thus reducing flange stress.
  • Marked in accordance with BS EN 13155.
  • Certification - Declaration of Conformity

      Specification

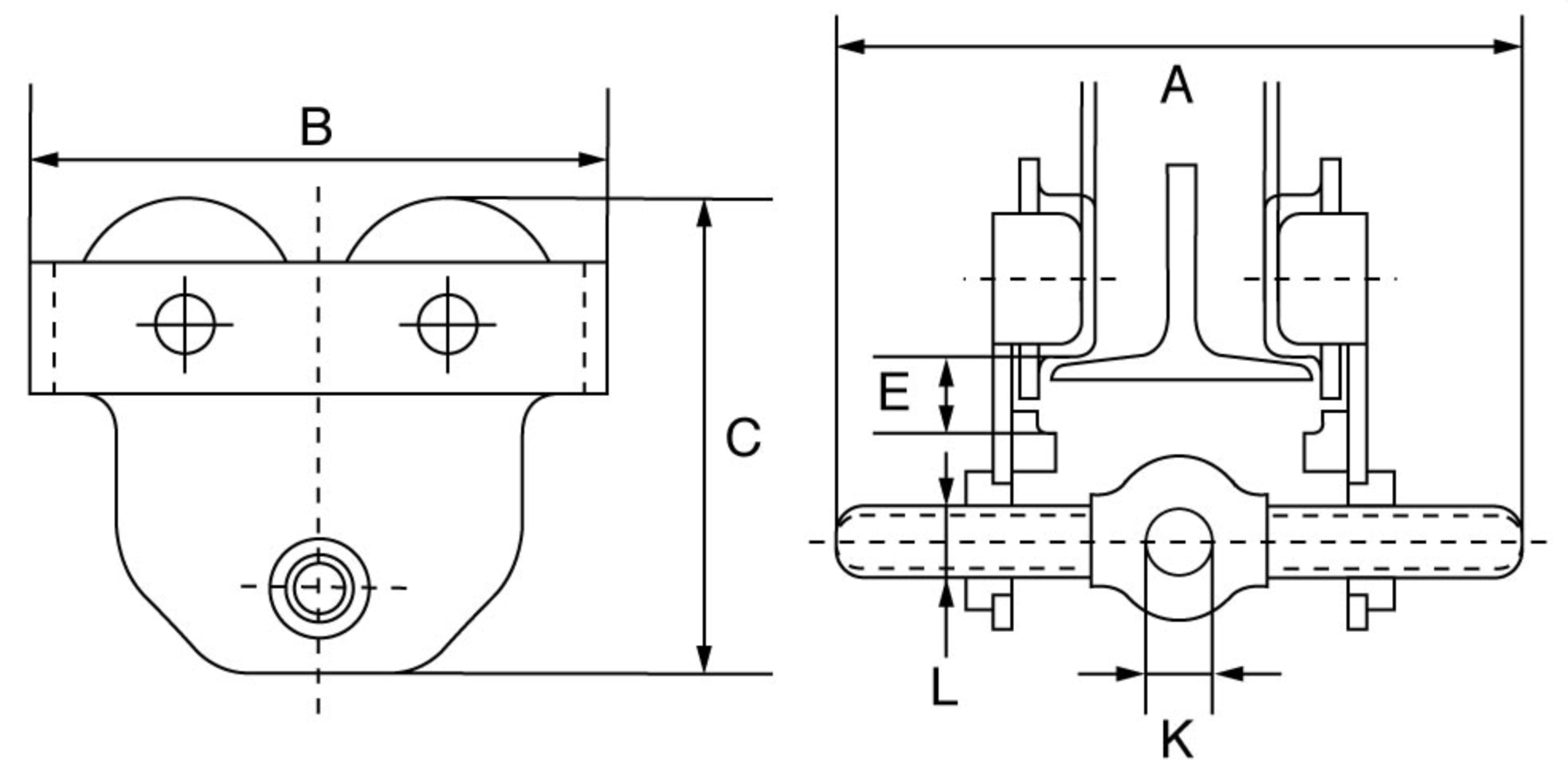

      SKU W.L.L. Beam Range A B C E K L Weight
      kgs mm mm mm mm mm mm mm kgs
      286-523-1 500 50 - 220 300 200 175 20 30 25 5.6
      286-523-2 1,000 58 - 220 300
      		 238 186 30 35 30 8.9
      286-523-3 2,000 66 - 220 310 270 215 30 47 40 14.8
      286-523-4 3,000 74 - 220 320 320 268 30 58 48 23.8
      286-523-5 5,000 90 - 220 330 365 306 32 70 60 37.0
