Globestock G.Tripod™ 230
The G-Tripod™ is a quality tripod that is both durable and versatile. It is designed for use within confined spaces and down-hole applications. The G.Tripod™ is setup over a horizontal aperture and can be used alongside our G.Saver II, G.Winch and G.Stop fall arrest products to provide a secure and stable anchorage. When used with the G.Saver II™ or G.Stop™, the G.Tripod™ protects personnel descending into or leaving a confined space and when used with the G.Winch™ it can be used to either lower or raise personnel.
The G.Tripod 230 is an EN795 (class B) + TS16415 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access.
Maximum working load (MWL) 200kg for personnel (safety factor 10:1), and 250kg for loads.

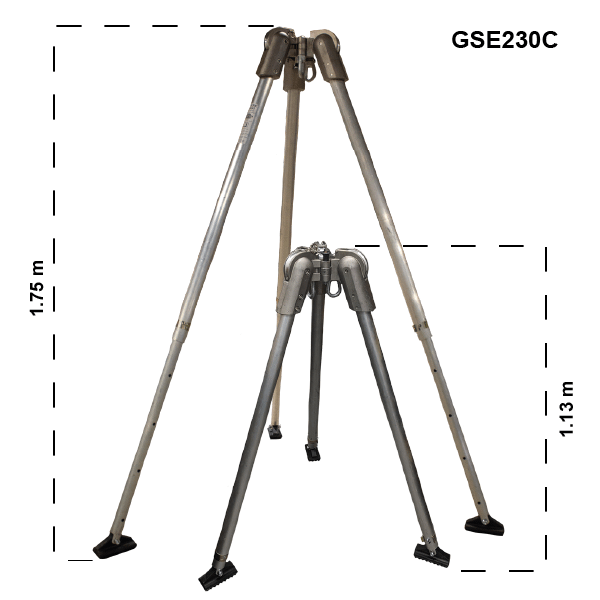

Two sizes available: Standard (21kg) or Compact (18kg).
It may be used as an anchor by more than one person simultaneously, providing the MWL is not exceeded.
The three-pulley head means that equipment can be fitted to any of the legs. The mounting eyes on the underside of the head allow for equipment to also be fitted beneath the head, such as a chain hoist.
The G.Tripod™ can also be supplied with brackets to suit the following equipment:
- The G.Saver II™ or G.Stop™
- The G.Winch™
Features;
- 136 KG Maximum Working Load
- Tubular Aluminum Construction
- Telescopic Adjustable Legs with Rubber Cups
- Allows 2 Devices to be Mounted
- Suitable for use with G.Saver II™, G.Winch™ or G.Stop™
- CE Certification
- Conforms to EN795
Dimensions
