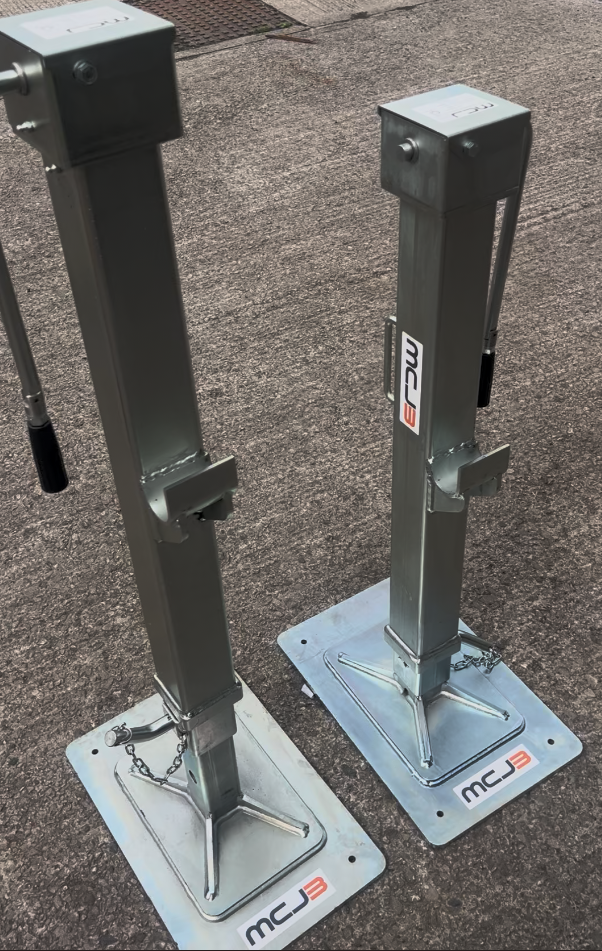

MCJ3 - Mechanical Cable Drum Jack Set

The MCJ range of Mechanical Cable Jacks are used to lift, support and distribute low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables.

Designed with the user in mind, the MCJ Cable Drum Jacks are simply operated with a mechanical winch via the foldable handle.

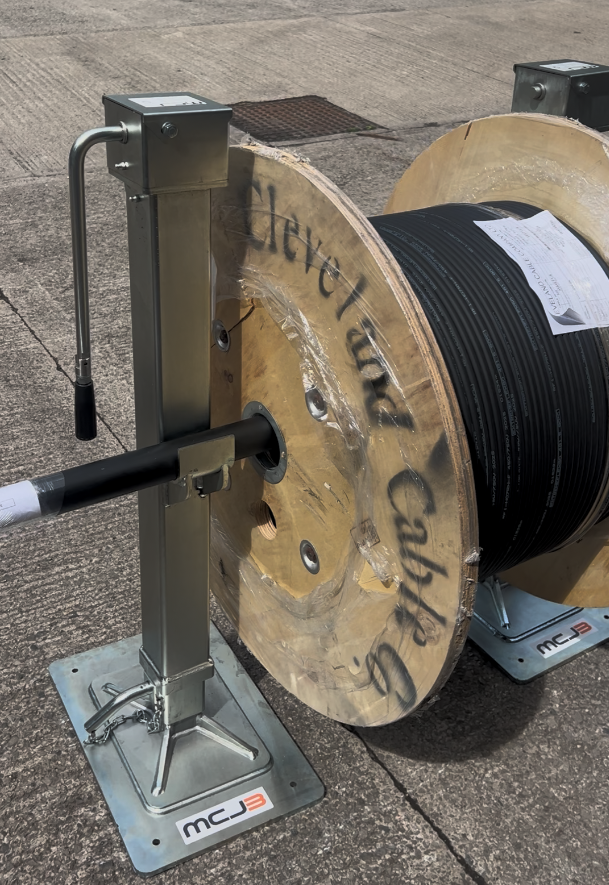

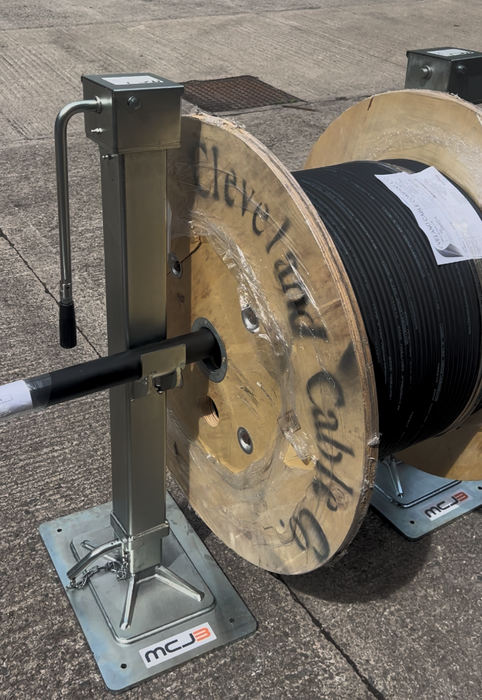

This model, the MCJ3 when used as a pair - allows distribution of cable reel drums up to 6.0t in capacity with a diameter of 1060mm to 1930mm

The MCJ base and jack leg can also be separated for ease of storage and transportation.

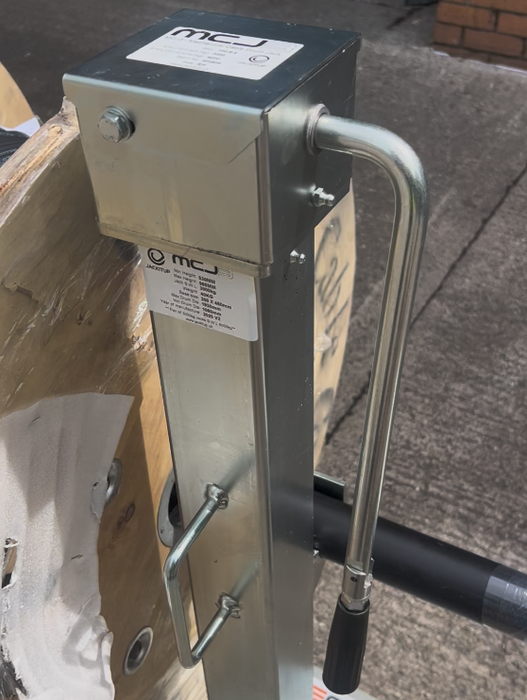

Carry handles are fitted to the MCJ Jack Leg, allowing pick up by one operator once the base has been removed.

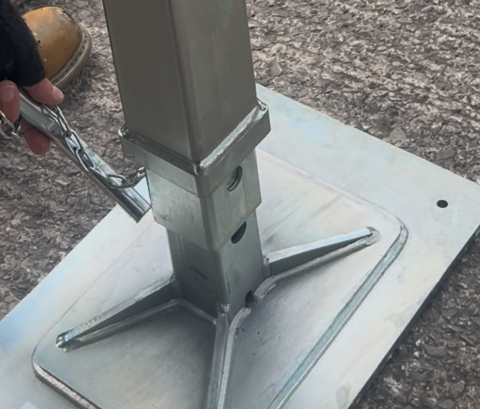

Featuring two adjustable pin levels for quick setup.

Whether it be for a permanent fixed position on the factory / warehouse floor or on site a construction site the base of the jacks are designed to give you stability whilst coiling / uncoiling your cables.

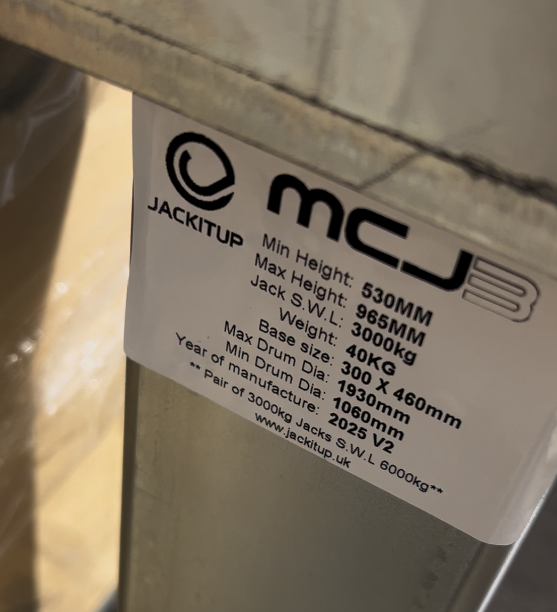

Specification MCJ3

• Inspected and certified
• Designed for heavy duty use
• Extra strong base plates

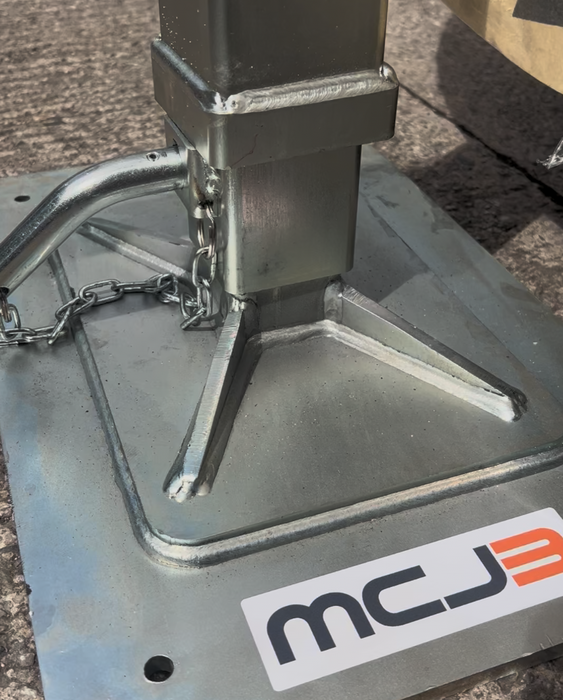

• 4 number 10mm diameter holes in base plate for permanent anchoring on site

• Finish - Zinc plated for corrosion protection
• Colour as standard: Silver
• Suitable for 1060-1930mm diameter cable drums
• Robust and easy to use
• Removable Base for easy storage and transportation

• Carry Handle on each Jack Leg

• Weight Each 34kg per Jack Leg
• Maximum Capacity 6000kg (when using a pair of 3.0t MCJ3 Jacks)
• Min Height 530 mm
• Max Height 965 mm
• Base Size 300 x 460 mm

Downloads

Operation manual

Maintenance manual

Data Sheet

Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
